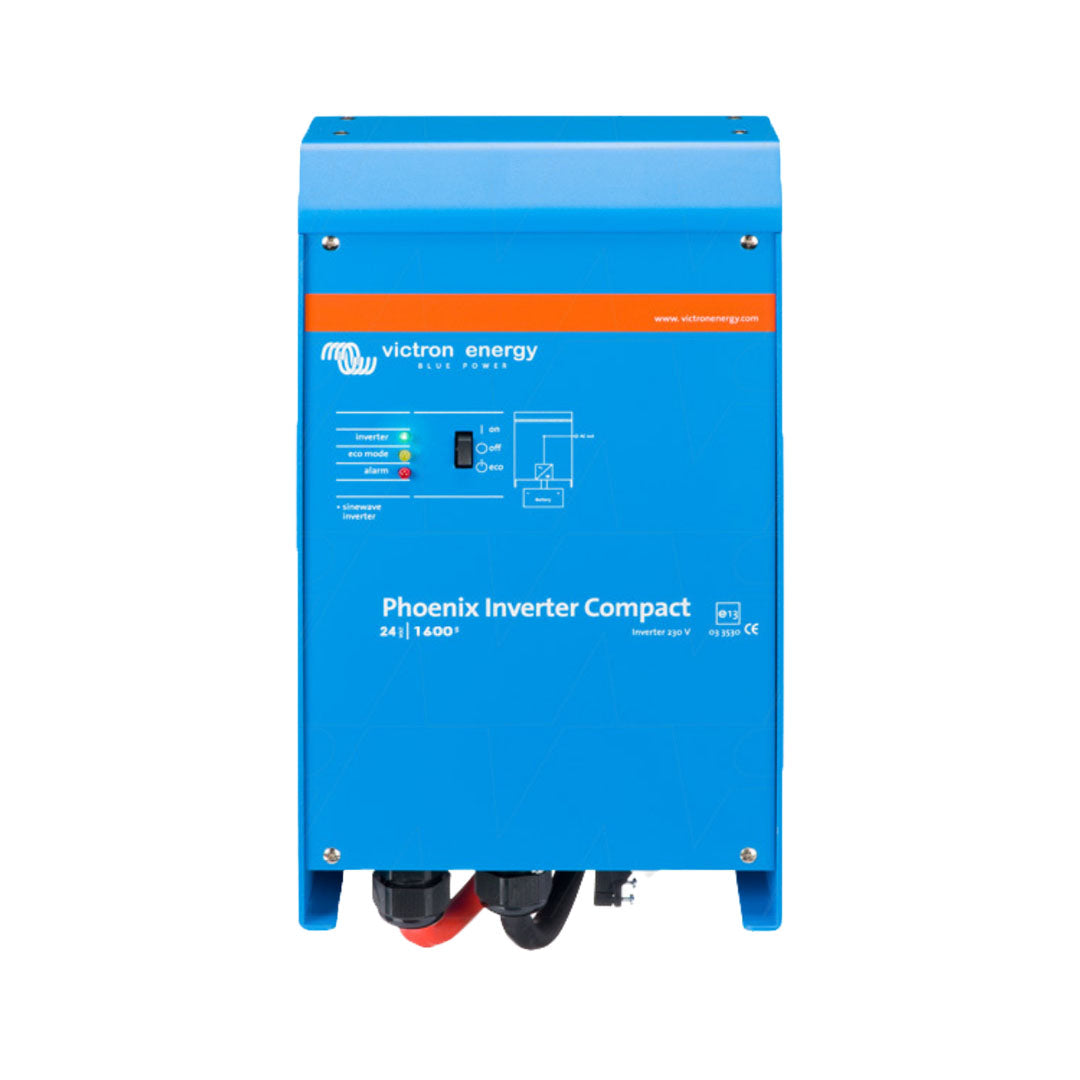

Victron Phoenix Inverter Compact 24/1600 230V VE.Bus - CIN241620000

Victron Phoenix Inverter Compact 24/1600 230V VE.Bus - CIN241620000

Please sign in to see pricing
  • Pure sine wave inverter – SinusMax technology delivers clean, stable AC power
  • High start-up surge capability – reliably powers motors, compressors and difficult loads
  • Compact & lightweight design – high-frequency hybrid technology for excellent efficiency
  • Parallel & 3-phase capable – scalable power for larger systems
  • VE.Bus communications – advanced configuration, monitoring and control
  • Professional-grade construction – designed for demanding, continuous-duty applications
View full details
  • Description
  • Downloads

Description

Overview

The Victron Phoenix Inverter Compact 1200VA – 2000VA range delivers high-quality pure sine wave AC power using Victron’s advanced SinusMax technology. Developed for professional-duty applications, these inverters combine compact size, light weight, and excellent efficiency without compromising performance.

Designed to handle demanding loads with ease, Phoenix Inverter Compact units provide exceptional start-up power, making them ideal for appliances such as refrigeration compressors, electric motors, and other high-inrush devices. Available in 12V and 24V models, they are suitable for a wide range of off-grid, mobile, and backup power systems.

Key Features

SinusMax Pure Sine Wave Technology

  • Produces a true sine wave suitable for sensitive electronics
  • Optimised efficiency without sacrificing performance
  • Hybrid high-frequency design for compact dimensions and low weight

High Start-Up Power

  • Exceptional surge capability compared to conventional HF inverters
  • Easily powers refrigeration compressors, pumps, and electric motors
  • Reliable performance under dynamic load conditions

Scalable System Design

  • Up to six units can be connected in parallel for increased output
  • Supports three-phase system configurations
  • Ideal for growing power requirements

Advanced Communication & Configuration

  • VE.Bus port for configuration and monitoring
  • Compatible with MK3-USB interface for PC connection
  • Customise output voltage, frequency, protection thresholds and relay functions
  • Relay can be programmed for alarms or generator start
  • Connects to GX devices (e.g. Cerbo GX) for system-wide monitoring

System Integration Options

  • For systems requiring automatic AC transfer, Victron MultiPlus models are recommended
  • MultiPlus provides seamless transfer (<20 ms) with optional charger disable
