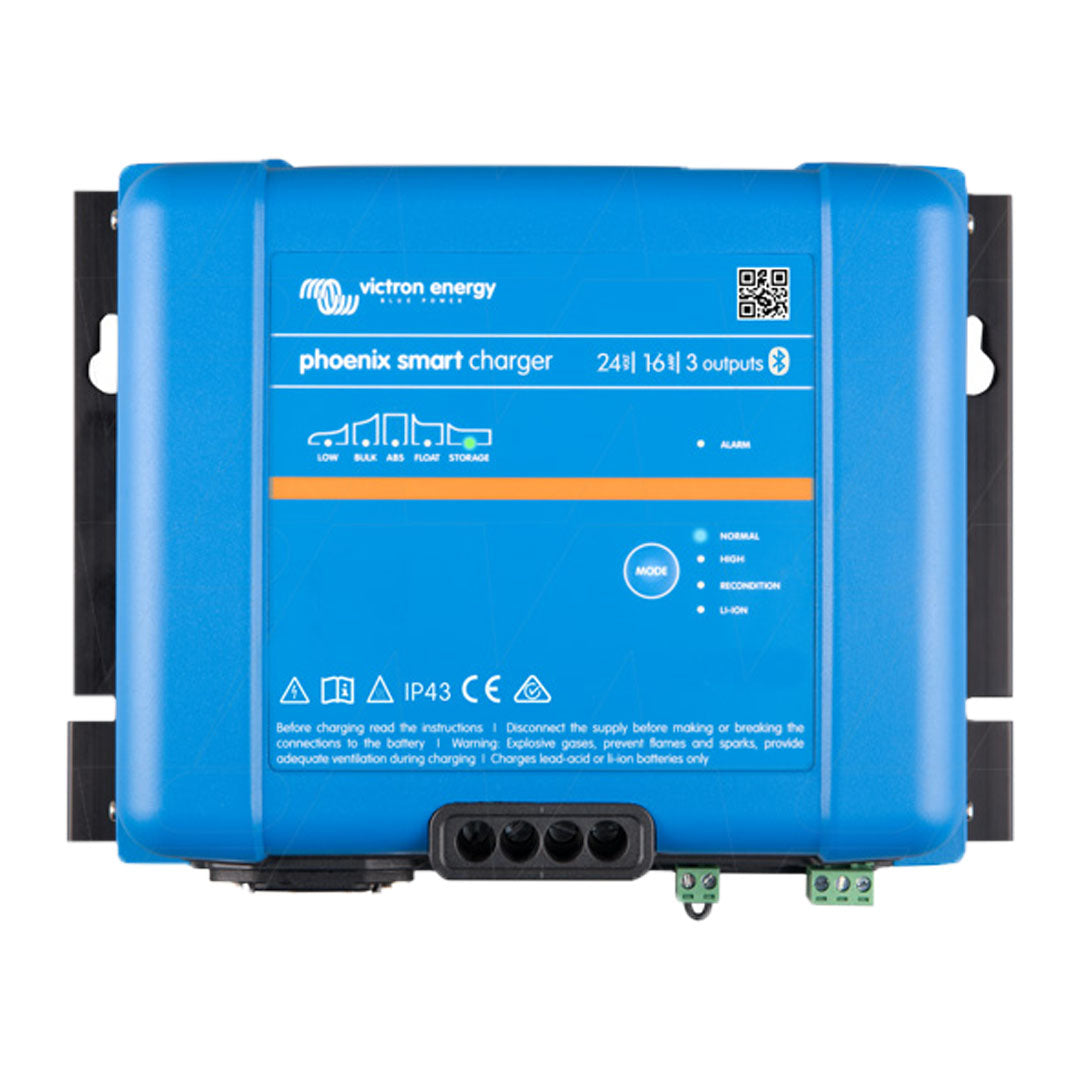

Victron Phoenix Smart IP43 Charger 24/16 (3) 230V - PSC241653085

Victron Phoenix Smart IP43 Charger 24/16 (3) 230V - PSC241653085

Please sign in to see pricing
  • Bluetooth Smart enabled – monitor, configure and update via VictronConnect
  • Multiple battery bank charging – 1+1 or 3-output models available
  • Adaptive 5-stage charging – optimised for battery longevity and performance
  • LiFePO₄ compatible – full lithium support via Bluetooth or BMS control
  • Automatic voltage compensation – correct charging at the battery terminals
  • IP43 rated – designed for marine and mobile environments
View full details
  • Description
  • Downloads

Description

Overview

The Victron Phoenix Smart IP43 Charger is a professional-grade, adaptive battery charger designed primarily for marine, mobile, and off-grid applications. With built-in Bluetooth Smart, it allows full monitoring, configuration, and firmware updates directly from a smartphone, tablet, or computer using VictronConnect.

Available in multi-output configurations, the Phoenix Smart IP43 can charge multiple battery banks simultaneously while intelligently adapting the charge process to battery usage. Its advanced charging algorithms, lithium compatibility, and robust design make it a reliable choice for demanding energy systems.

Key Features

Multi-Bank Charging Options

  • Phoenix Smart (1+1): two outputs to charge two battery banks
  • Second output limited to ~3 A for starter battery maintenance
  • Phoenix Smart (3): three full-current outputs for three battery banks
  • Combined output current limited to the charger’s rated capacity

Adaptive 5-Stage Charging Algorithm

  • Bulk – Absorption – Recondition – Float – Storage
  • Automatically adjusts charging based on battery usage
  • Variable absorption time prevents overcharging during shallow cycles
  • Extended absorption after deep discharge ensures full recharge

BatterySafe & Storage Modes

  • BatterySafe mode limits voltage rise to prevent excessive gassing
  • Storage mode reduces float voltage after 24 hours of inactivity
  • Weekly absorption cycle prevents sulphation and electrolyte stratification

Lithium Battery Support

  • Charges Li-ion (LiFePO₄) batteries safely
  • Remote on/off control via Li-ion BMS relay or optocoupler
  • Full voltage and current control available via Bluetooth

Smart Connectivity & Control

  • Bluetooth Smart for real-time monitoring and configuration
  • VE.Direct interface for wired connection to GX devices or PC
  • Programmable relay for alarms or system automation
  • Remote on/off terminals for external control

Installation & Performance

  • Automatic voltage compensation for DC cable losses
  • High efficiency with minimal heat generation
  • IP43 enclosure suitable for marine and mobile environments

Downloads
