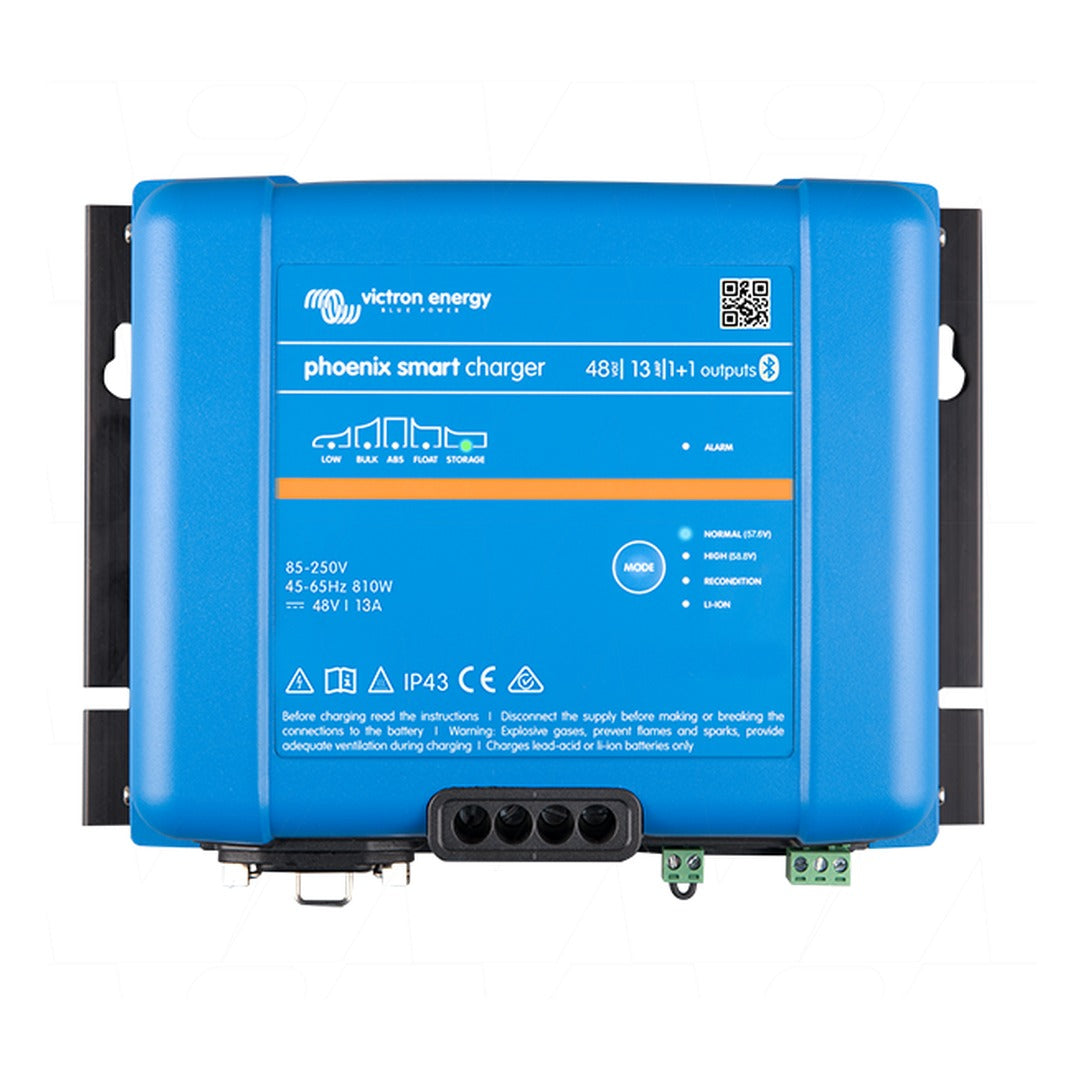

Victron Phoenix Smart IP43 Charger 48/13 (1) 120-240V - PSC481350095
Victron Phoenix Smart IP43 Charger 48/13 (1) 120-240V - PSC481350095
Description
Overview
The Victron Phoenix Smart IP43 Charger 48/13 (1) is a 48V, 13A adaptive battery charger with a single output for one battery bank. Natural convection cooled, with Bluetooth built in and a wide 85–250VAC input (90–375VDC), it suits off-grid, marine and backup power systems.
Its adaptive 6-stage charge algorithm (3-stage for Li-ion) charges both lead-acid and LiFePO₄ batteries, with Normal, High and Lithium modes selectable from the mode button and a fully programmable algorithm via Bluetooth or VE.Direct. Set up, monitor and update it from the VictronConnect app, or connect it to a GX device such as the Cerbo GX for full system integration.
Please note: the AC mains cord is ordered separately. For Australian and New Zealand installations, add the Victron Mains Cable AU/NZ 2m (ADA010100300).
Key Features
High-Performance Charging Design
- 13A charge current to a single 48V battery bank (6.5A low current mode)
- Up to 96% efficiency at 230VAC (94% at 120VAC)
- Power factor >0.99 and natural convection cooling
Inherently Safe Battery Charging
- Adaptive 6-stage algorithm: bulk, absorption, recondition, float, storage, refresh
- Variable absorption time — short after shallow discharges, extended after deep discharges
- BatterySafe mode limits excessive gassing; Storage mode reduces float voltage when the battery is not in use
- Protected against battery reverse polarity, output short circuit and over temperature
Lithium (LiFePO₄) Ready
- Dedicated Lithium mode: 56.8V absorption, 54V storage
- Remote on/off port for control from a Li-ion BMS relay or optocoupler output
- Full control of charge voltage and current via Bluetooth
Integrated Monitoring & Control
- Bluetooth Smart built in — set up, monitor, control and update with VictronConnect
- VE.Direct interface for a wired connection to a GX device, with Instant Readout remotely from VRM
- VE.Smart Networking: battery voltage and temperature sensing from a Smart Battery Sense, SmartShunt or BMV-712, plus synchronised charging across multiple Smart IP43 Chargers
- Programmable relay (SPDT) to trip on alarms or other events
Installation & System Integration
- 85–250VAC input (full power from 100VAC) or 90–375VDC
- Screw battery terminals for cables up to 16mm² (AWG6)
- IEC 320 C14 AC inlet with retainer clip — mains cord ordered separately (ADA010100300 for AU/NZ)
- Can also be used as a power supply, with output voltage set via Bluetooth or VE.Direct
Operating Environment
- IP43 aluminium enclosure
- Operating range -20 to 60°C (rated output up to 40°C, derating linearly to 20% at 60°C)
- Humidity up to 95% (non-condensing)
Specifications
| Model | Smart IP43 Charger 48/13 (1) 120-240V |
|---|---|
| Part Number | PSC481350095 |
| Battery Voltage | 48V |
| Number of Battery Connections | 1 |
| Charge Current House Battery | 13 A |
| Low Current Mode | 6.5 A |
| Input Voltage | 85 – 250 VAC (full power from 100 VAC, startup from 90 VAC) |
| DC Input Voltage Range | 90 – 375 VDC |
| Frequency | 45-65 Hz |
| Power Factor | >0.99 |
| Maximum Efficiency – 230VAC / 120VAC | 96 % / 94 % |
| Maximum Input Current Setting | 3 – 10 A |
| No Load Power Consumption | 1 W |
| Back Current Drain | <1 mA |
| Charge Voltage – Normal Mode (Absorption / Float / Storage) | 57.6V / 55.2V / 52.8V |
| Charge Voltage – High Mode (Absorption / Float / Storage) | 58.8V / 55.2V / 52.8V |
| Charge Voltage – Lithium Mode (Absorption / Float / Storage) | 56.8V / N/A / 54V |
| Temperature Compensation – Default | -64 mV/°C |
| Charge Algorithm | 6-stage adaptive (3 stage for Li-ion) |
| Fully Programmable | Yes, with Bluetooth and/or VE.Direct |
| Can Be Used as Power Supply | Yes, output voltage can be set with Bluetooth and/or VE.Direct |
| Protection | Battery reverse polarity (fuse, not user accessible) / Output short circuit / Over temperature |
| Remote On/Off | Yes (2 pole terminal) |
| Relay (Programmable) | Yes (SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC) |
| Bluetooth | Power: +4 dBm | Frequency: 2402 – 2480 MHz |
| Operating Temperature Range | -20 to 60 °C (0 – 140 °F); rated output current up to 40 °C, derate linearly to 20 % at 60 °C |
| Humidity (Non-Condensing) | max 95 % |
| Material & Color | aluminium (blue RAL 5012) |
| Battery Connection | Screw terminals 16 mm² (AWG6) |
| AC Connection | IEC 320 C14 inlet with retainer clip (AC cord ordered separately) |
| Protection Category | IP43 |
| Weight | 2.7 kg (6 lbs) |
| Dimensions (H x W x D) | 180 x 249 x 116 mm (7.1 x 9.8 x 4.6 inch) |
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Immunity | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
| Vibration | IEC68-2-6:10-150Hz/1.0G |
