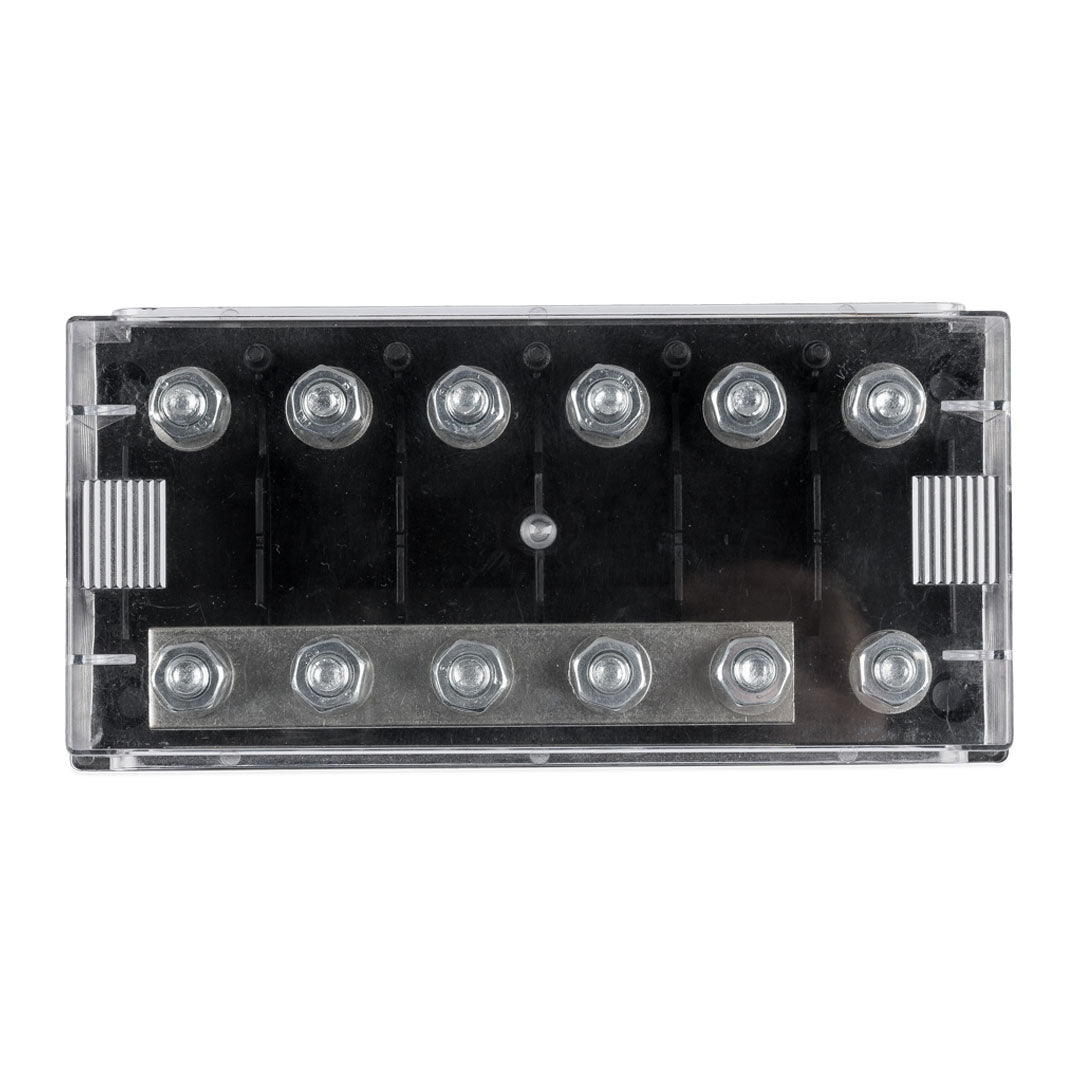

Victron Six-way fuse holder for Mega-fuse with busbar (250A) - CIP050060000

Overview

The Victron 6-way MEGA Fuse Holder is a high-current fuse distribution solution designed to simplify battery and alternator wiring while providing reliable protection for multiple DC circuits.

Featuring a common positive busbar, this fuse holder allows a single positive cable from the battery to supply up to six fused circuits, reducing cabling complexity and ensuring even power distribution across connected loads.

Key Features

Centralised Fuse Distribution

• Six MEGA fuse positions in a single compact assembly
• One straight-through fuse port and five ports via a tin-plated copper busbar
• Ideal for battery banks and high-current DC systems

Integrated Busbar Design

• Common positive busbar reduces the number of battery cable runs
• Busbar rated for a maximum of 250 A
• Maximum system voltage of 70 V DC

Construction & Hardware

• Black ABS base for durability and electrical insulation
• Twelve M8 galvanised steel bolts supplied
• Includes hex nuts, spring washers, and plain washers

Safety & Protection

• Clear polycarbonate cover clips over the entire assembly
• Protects terminals from accidental contact
• Improves safety during installation and maintenance

Compatibility

• Designed for use with Victron MEGA fuses
• Suitable for battery, alternator, and large-gauge DC cabling
• Fuses sold separately
