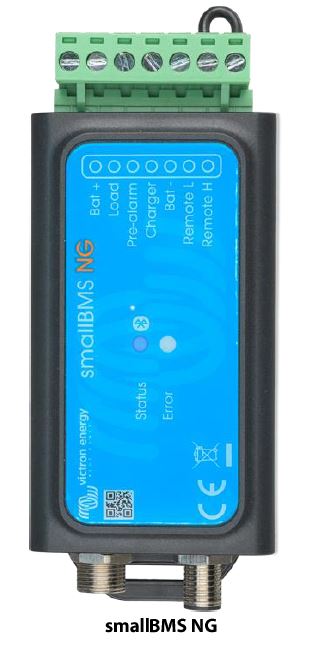

Victron smallBMS NG - BMS400100300

Overview

The Victron smallBMS NG with Pre-Alarm is a compact and cost-effective Battery Management System designed exclusively for Victron Lithium NG (LiFePO₄) batteries. It provides essential monitoring, protection and control functions for battery banks without the complexity of VE.Bus integration.

Offering a simpler alternative to the VE.Bus BMS NG, the smallBMS NG is ideal for systems that do not require VE.Bus-compatible inverter/chargers such as MultiPlus or Quattro. It supports large, scalable battery configurations while maintaining robust protection and early warning capabilities.

Key Features

Battery Protection & Monitoring

• Monitors Lithium NG battery voltage and temperature
• Protects against overvoltage and undervoltage conditions
• Ensures safe operation of LiFePO₄ battery banks

Pre-Alarm Functionality

• Provides early warning before low-voltage disconnect
• Allows activation of alarms, buzzers or indicators
• Improves system reliability and user awareness

Flexible Battery Configuration

• Supports 12.8V, 25.6V and 51.2V Lithium NG batteries
• Batteries can be connected in series, parallel or combined
• Suitable for 12V, 24V and 48V system voltages

Scalable Energy Storage

• Up to 50 batteries supported in 12V or 24V systems
• Up to 25 batteries supported in 48V systems
• Maximum storage capacity: 192kWh (12V), 384kWh (24V), 128kWh (48V)

Simple System Integration

• Straightforward wiring and configuration
• Ideal for DC-coupled and non-VE.Bus systems
• Not compatible with VE.Bus MultiPlus or Quattro systems
