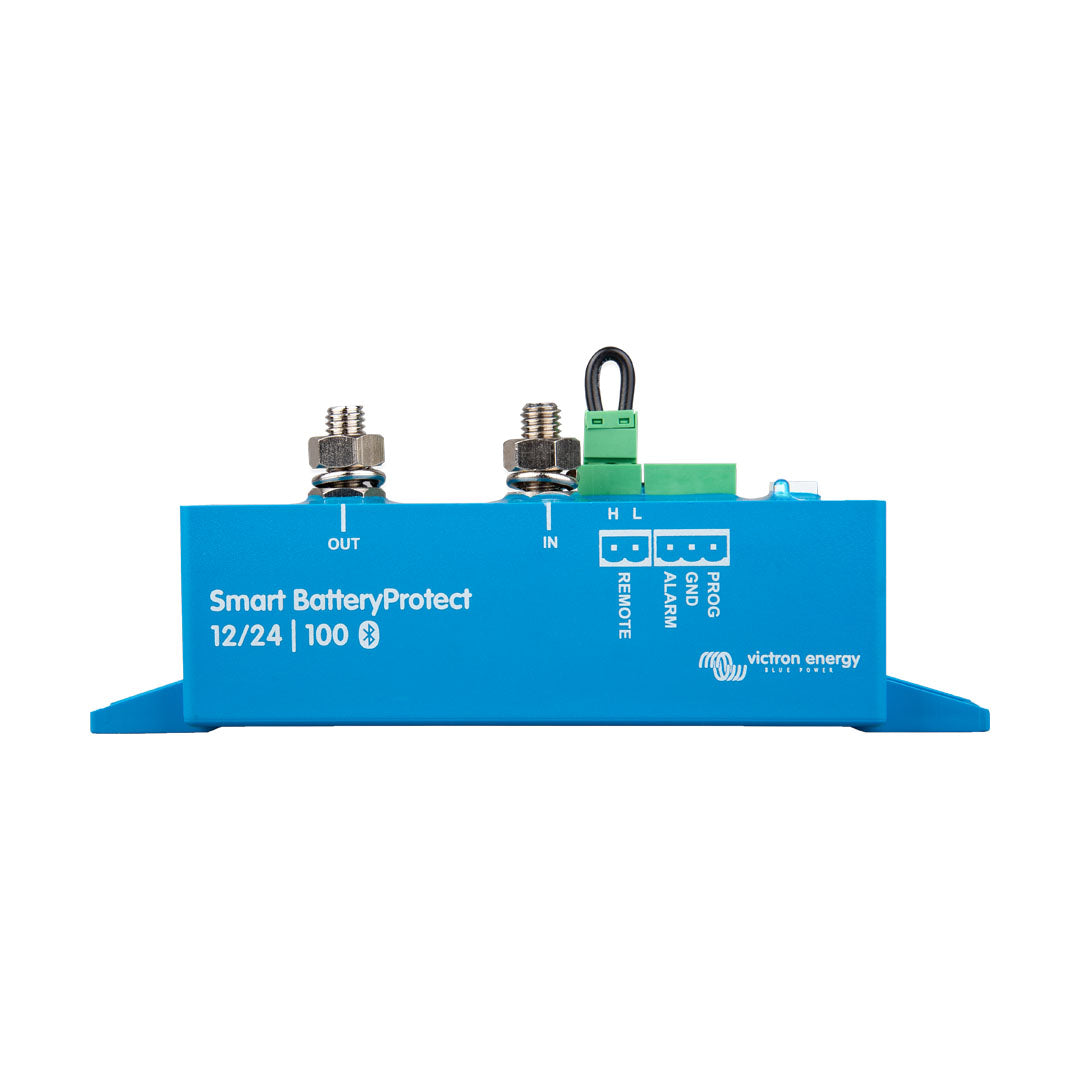

Victron Smart Battery Protect 12/24V-100A - BPR110022000

Victron Smart Battery Protect 12/24V-100A - BPR110022000

Please sign in to see pricing
  • Smart battery protection – prevents deep discharge and battery damage
  • Bluetooth configurable – customise disconnect and reconnect levels via app
  • Multiple current ratings – available in 65A, 100A, and 220A versions
  • Nine preset profiles – simple setup using the programming pin
  • Uni-directional operation – controlled current flow from IN to OUT
View full details
  • Description
  • Downloads

Description

Overview

The Victron Smart BatteryProtect is an intelligent battery protection device designed to automatically disconnect non-essential loads before a battery becomes fully discharged. This protects the battery from damage and ensures sufficient reserve capacity remains available for critical functions such as engine starting.

With built-in Bluetooth connectivity and flexible configuration options, the Smart BatteryProtect offers precise control over battery protection settings for a wide range of DC power systems.

Key Features

Automatic Battery Protection

  • Disconnects non-essential loads before harmful deep discharge
  • Helps extend battery lifespan and maintain performance
  • Prevents loss of power required for engine cranking

Flexible Configuration

  • Bluetooth programming for custom engage and disengage voltage levels
  • Bluetooth can be disabled if required
  • Nine predefined voltage profiles selectable via programming pin

Uni-Directional Current Design

  • Handles current flow in one direction only
  • Suitable for either load protection or charger protection, not both simultaneously
  • Current flows exclusively from the IN terminal to the OUT terminal

Versatile Application Use

  • Battery connects to IN terminal when used for load protection
  • Charger connects to IN terminal when used for charger protection

Downloads

Datasheet
