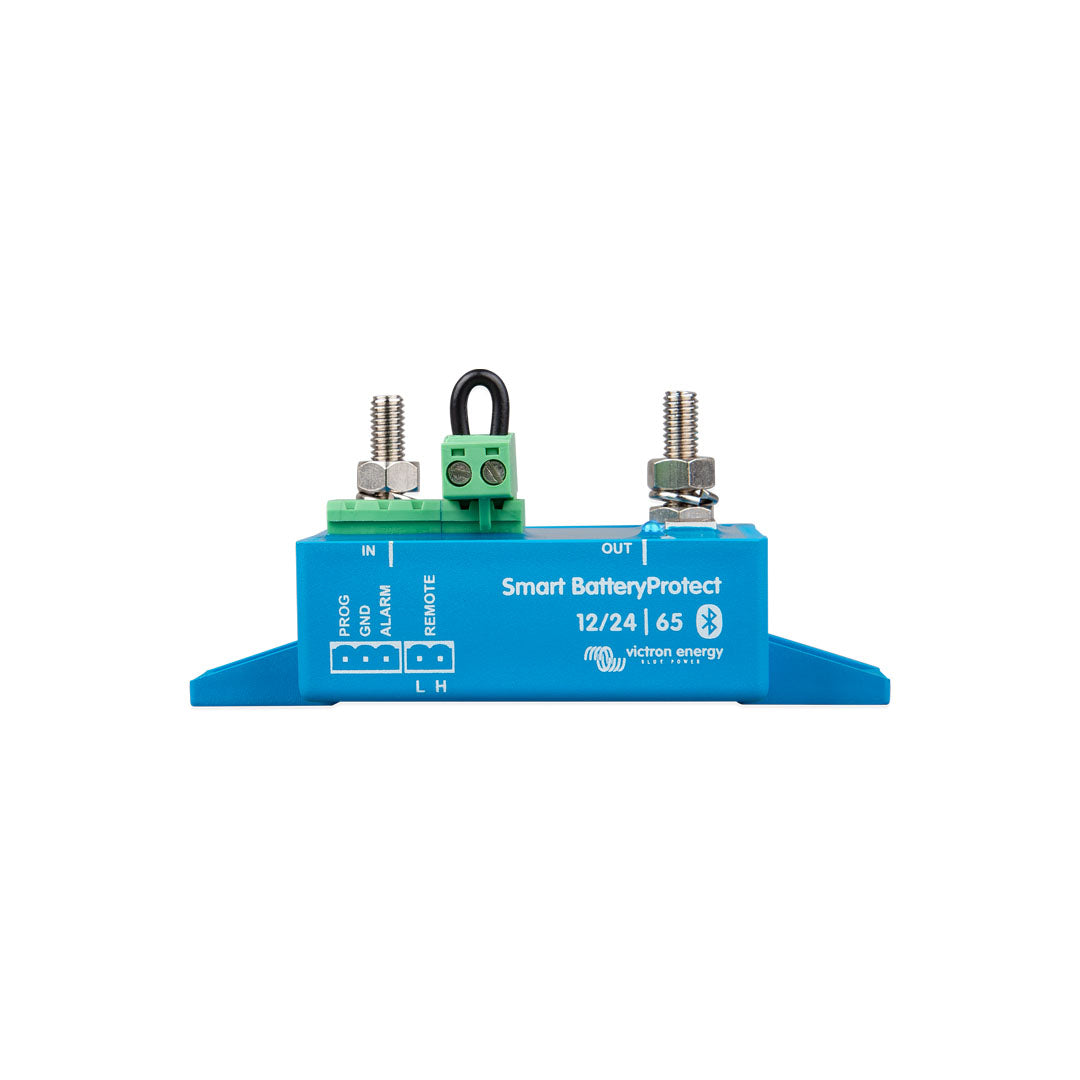

Victron Smart Battery Protect 12/24V-65A - BPR065022000

Overview

The Victron Smart BatteryProtect is an advanced battery protection device designed to automatically disconnect non-essential loads before a battery becomes dangerously discharged. This prevents permanent battery damage and ensures sufficient reserve power remains available for critical functions such as engine cranking.

With integrated Bluetooth connectivity, the Smart BatteryProtect allows precise control over disconnect and reconnect voltage levels, offering flexible configuration for a wide range of battery systems and applications.

Key Features

Automatic Battery Protection

• Disconnects loads before harmful deep discharge occurs
• Helps preserve battery health and extend service life
• Prevents insufficient power for engine starting

Smart Configuration Options

• Bluetooth programming via Victron app
• User-defined engage and disengage voltage levels
• Option to disable Bluetooth if required

Preset Profiles for Simple Setup

• Nine predefined voltage profiles selectable via programming pin
• Ideal for fast installation without app configuration

Uni-Directional Current Flow

• Designed for current flow in one direction only
• Supports either load protection or charger protection, not both simultaneously
• Current flows exclusively from IN terminal to OUT terminal

Flexible Application Use

• Battery connects to IN terminal when protecting loads
• Charger connects to IN terminal when protecting charging circuits
