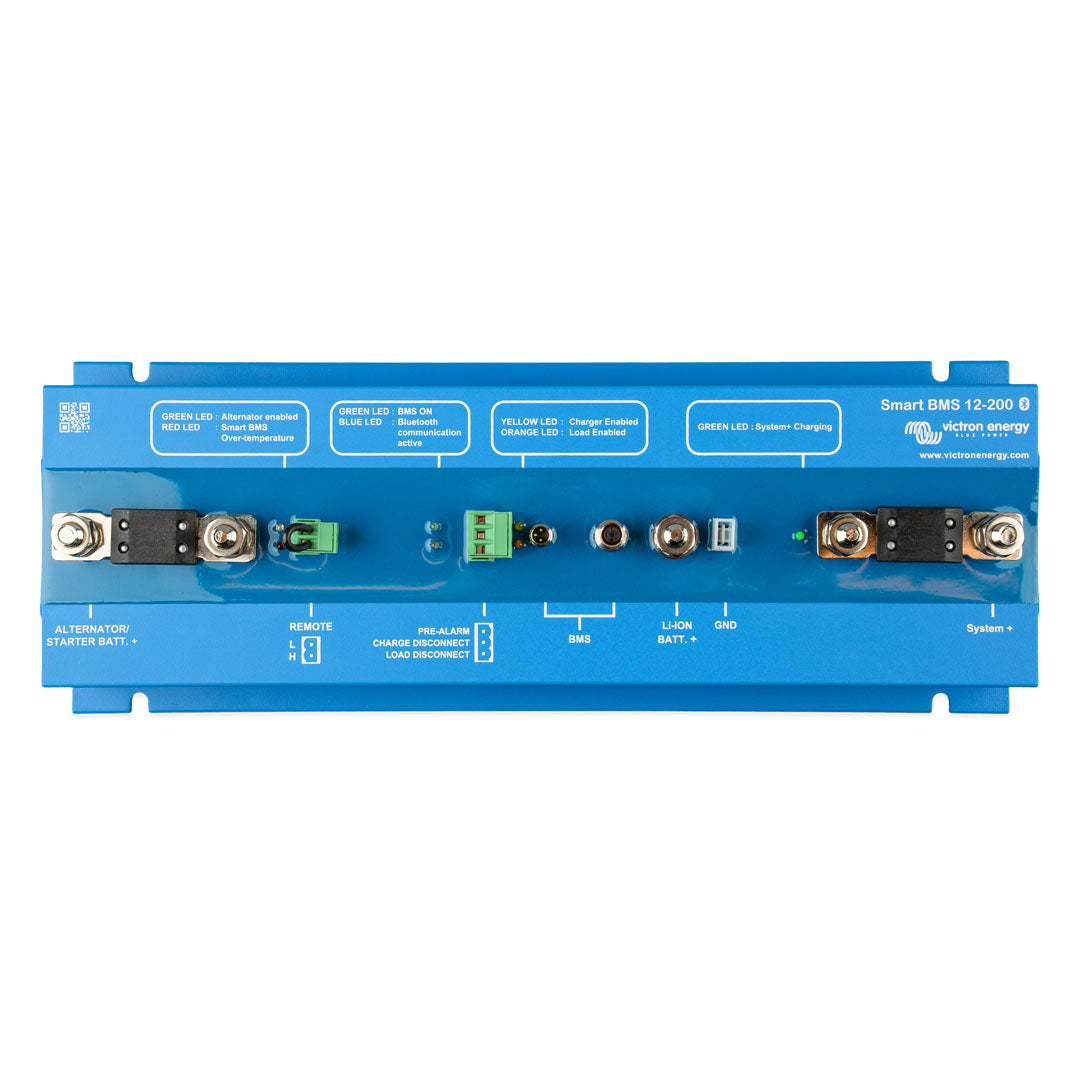

Victron Smart BMS 12/200 - BMS210055000

Victron Smart BMS 12/200 - BMS210055000

Please sign in to see pricing
  • All-in-one lithium BMS – integrates current limiting, battery combining, and load protection
  • 12V system ready – designed for vehicles and boats with 12V alternators
  • 200A capacity – supports high-current alternators, loads, and chargers
  • Bluetooth enabled – monitoring and configuration via Victron app
  • Advanced safety features – cell-level protection with pre-alarm and remote on/off
View full details
  • Description
  • Downloads

Description

Overview

The Victron Smart BMS 12/200 is an all-in-one Battery Management System designed for Victron Lithium-Iron-Phosphate (LiFePO₄) Smart Batteries in 12V systems, such as those found in vehicles and boats.

Combining a current limiter, battery combiner, and battery protector into a compact and robust unit, the Smart BMS 12/200 allows safe connection of any size 12V alternator, chargers, and DC loads while ensuring full protection of both the lithium battery system and the starter battery.

Key Features

Comprehensive Battery Management

  • Monitors and protects individual lithium battery cells
  • Guards against low cell voltage, high cell voltage, and over-temperature
  • Automatically disconnects alternator, chargers, or loads when required

Alternator-Safe Integration

  • Dedicated alternator connection with current limiting
  • One-way current flow from alternator to battery
  • Allows safe connection of alternators of any size
  • Protects the starter battery from excessive discharge

All-in-One System Design

  • Integrated current limiter, battery combiner, and battery protector
  • Supports alternators, DC loads, and battery chargers
  • Rated for up to 200A continuous current

Smart Control & Monitoring

  • Bluetooth connectivity for monitoring and configuration
  • Remote on/off connector for full system shutdown
  • Pre-alarm contact provides early warning before system disconnect

Downloads

Datasheet
