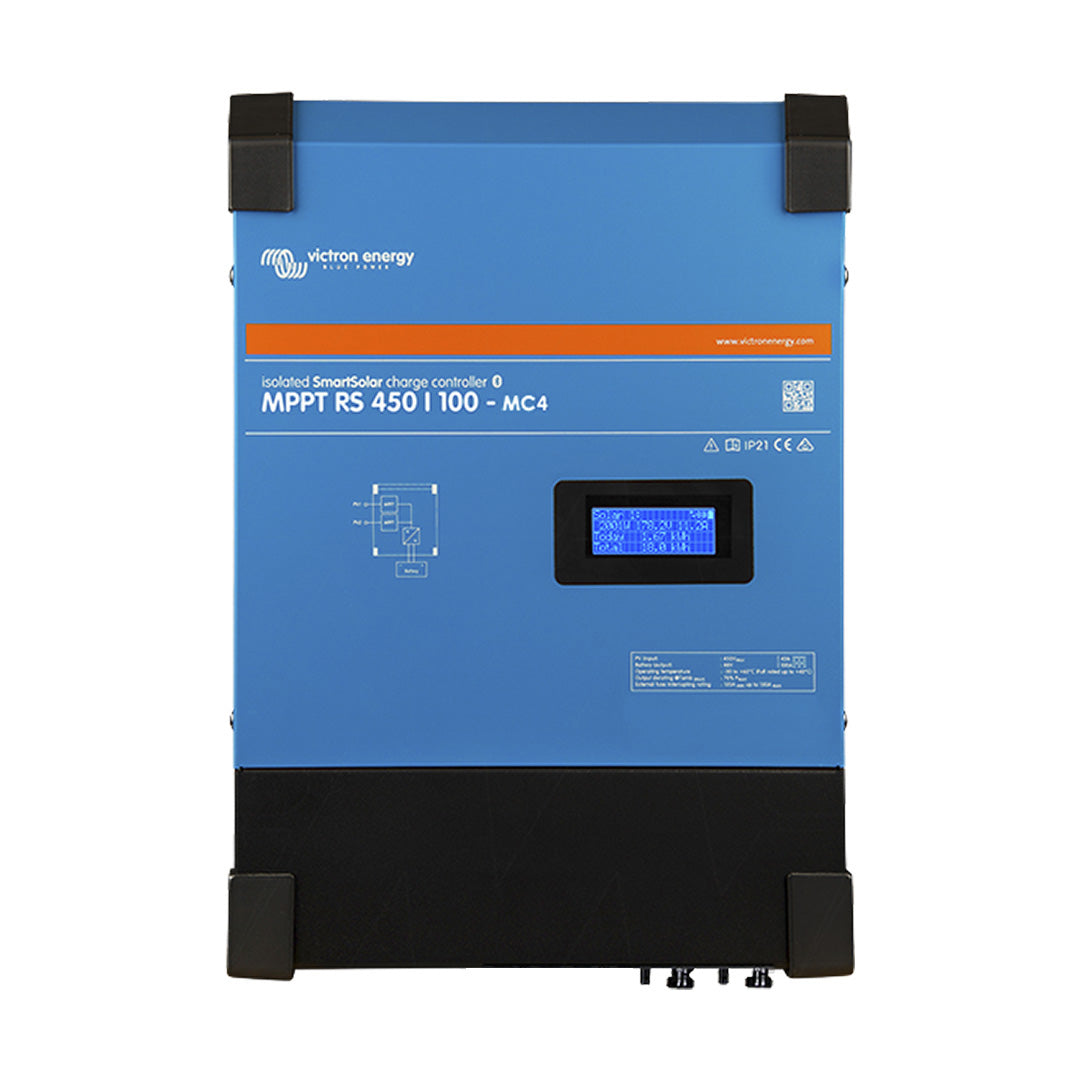

Victron SmartSolar MPPT RS 450/100-MC4- SCC145110512

Overview

The Victron SmartSolar MPPT RS range is designed for systems with large, series-connected solar arrays charging 48V DC battery banks. It is an ideal solution for large off-grid and grid-connected battery systems where high PV voltages and advanced control are required.

Available in 5.76 kW and 11.52 kW models, the SmartSolar MPPT RS features a wide 80–450 VDC solar input range, independent MPPT trackers, full connectivity, isolated PV inputs, and a built-in display. A modern metal enclosure with fully covered electrical connections improves safety and aligns with Victron’s latest product design language.

Key Features

High-Voltage Solar Input

• Designed for large, series-connected PV arrays
• Wide operating solar voltage range from 80 to 450 VDC
• Isolated PV connections for improved safety

Advanced MPPT Performance

• Independent MPPT tracking inputs for optimised energy harvest
• Maximises solar yield across varying array orientations and conditions

Programmable Battery Charging

• Fully programmable charging parameters
• Designed specifically for 48V battery systems

Integrated Monitoring & Cooling

• Built-in display for local system visibility
• Full connectivity for system monitoring and integration
• Active cooling ensures stable performance under high load

Models

• 450/100-Tr (5.76 kW)
• 450/200-Tr (11.52 kW)
