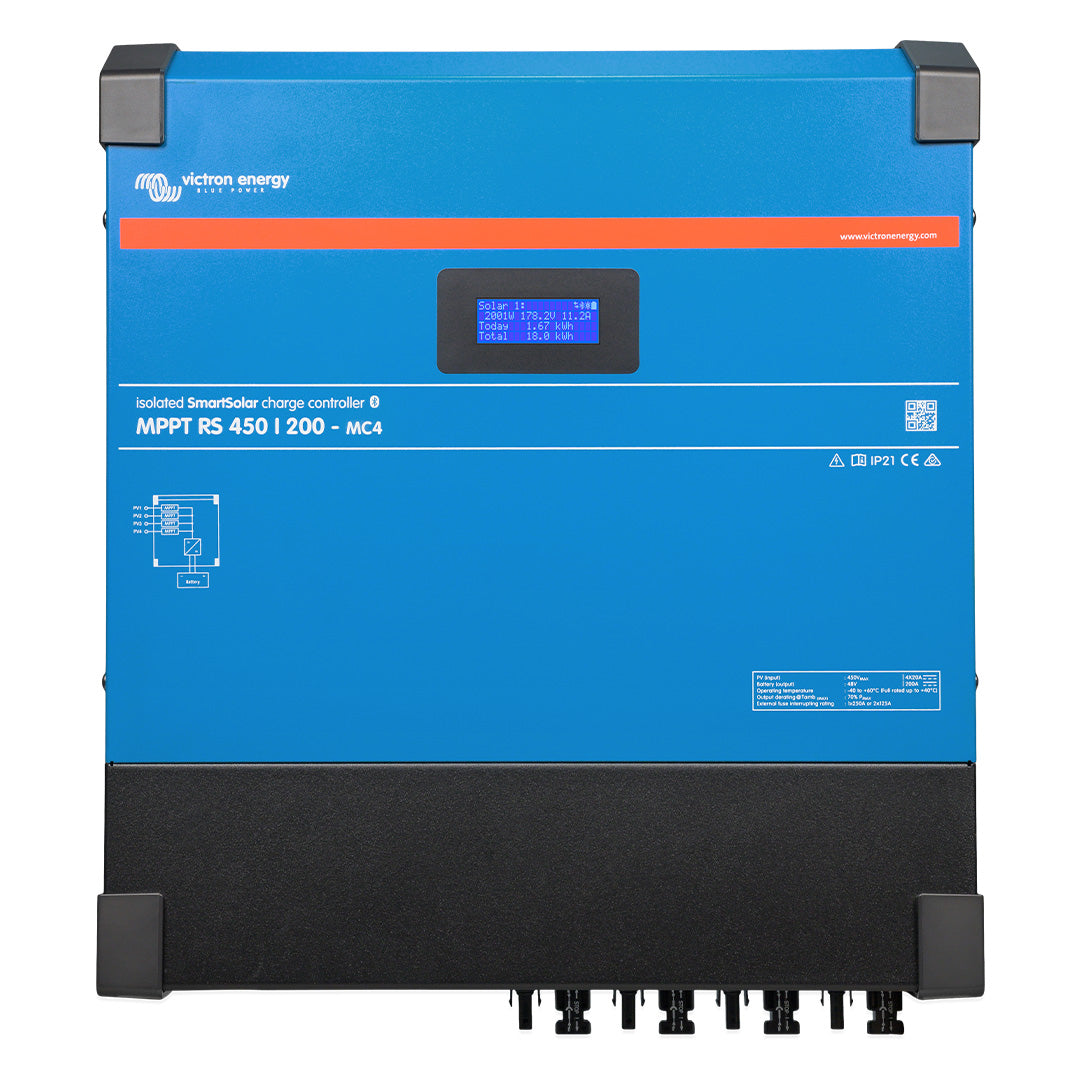

Victron SmartSolar MPPT RS 450/200-MC4 - SCC145120512

Overview

Important: Genuine MC4 connectors must be used with these models.

The Victron SmartSolar MPPT RS range is designed for systems with large, series-connected solar arrays charging 48V DC battery banks. It is an ideal solution for large off-grid and grid-connected battery systems where high PV voltages, performance, and safety are critical.

Available in 5.76 kW and 11.52 kW models, the SmartSolar MPPT RS features a wide 80–450 VDC solar input range, independent MPPT tracking inputs, full connectivity, isolated PV connections, and a built-in display. The modern metal enclosure with fully covered electrical connections improves safety and aligns with Victron’s latest product design.

Key Features

High-Voltage Solar Input

• Designed for large, series-connected PV arrays
• Wide operating solar voltage range from 80 to 450 VDC
• Isolated PV connections for improved electrical safety

Advanced MPPT Performance

• Independent MPPT trackers for optimised energy harvest
• Improved performance across multiple array orientations

Programmable Battery Charging

• Fully programmable battery charging parameters
• Optimised for 48V battery systems

Integrated Monitoring & Cooling

• Built-in display for local system visibility
• Full connectivity for monitoring and system integration
• Active cooling for stable performance under high load

Models

• 450/100-MC4 (5.76 kW)
• 450/200-MC4 (11.52 kW)
