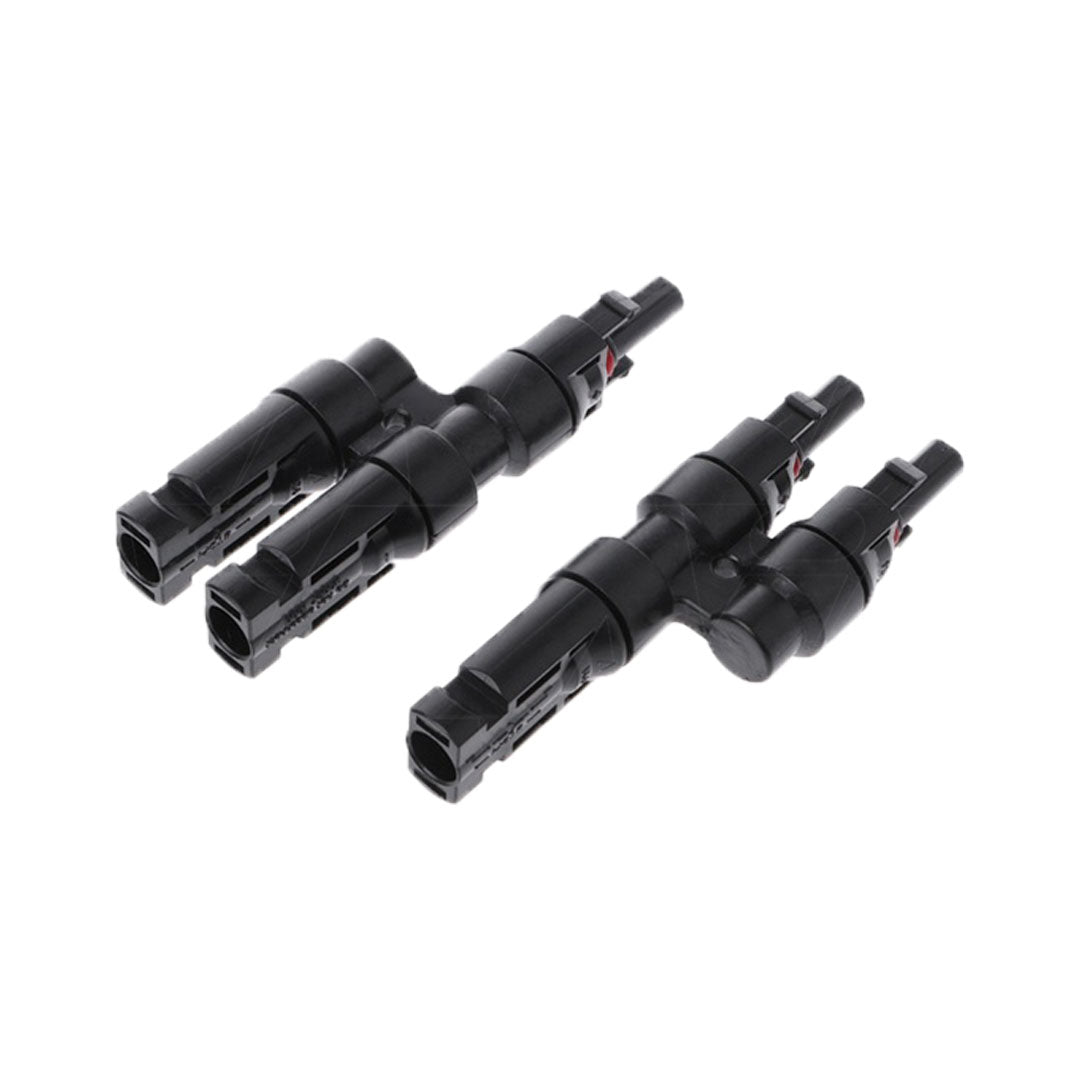

Victron Solar splitter pair MC4-Y, 1x M-2F / 1xF-2M - SCA520500000

Quick Feature Highlights

• MC4 solar cable splitter adaptor – enables parallel PV panel connections
• Multiple configuration options – 1× male to 2× female and 2× male to 1× female
• Designed for BlueSolar panels – compatible with Victron BlueSolar range
• Industry-standard MC4 connectors – reliable and secure PV connections
• 4 mm contact pin design – Multi-Contact MC4 specification
• Ideal for PV array expansion – simplifies solar panel wiring

Overview

The MC4 (PV-ST01) Solar Cable Splitter Adaptor is designed to simplify the connection of solar panel fly leads when configuring photovoltaic arrays. Commonly used with the Victron BlueSolar range of solar panels, this adaptor enables parallel wiring of PV modules using industry-standard MC4 connectors.

Available in both 1× male to 2× female and 2× male to 1× female configurations, the PV-ST01 splitter provides flexible and reliable connectivity for expanding or reconfiguring solar panel strings.

Key Features

MC4 Splitter Functionality

• Allows parallel connection of solar panel strings
• Simplifies PV array configuration and expansion
• Reduces installation time and complexity

Industry-Standard MC4 Connectors

• MC4 connectors with 4 mm diameter pin contacts
• MC stands for Multi-Contact, ensuring secure electrical contact
• Designed for long-term outdoor PV use

Configuration Options

• 1× male to 2× female MC4 splitter adaptor
• 2× male to 1× female MC4 splitter adaptor
• Suitable for positive and negative PV cable management

System Compatibility

• Designed for use with Victron BlueSolar range of solar panels
• Compatible with standard MC4 solar panel fly leads
• Suitable for residential and commercial PV installations

Approvals & Compliance

• Manufactured to MC4 connector standards
• Installation to be completed in accordance with applicable PV and electrical standards

Warranty & Support

• Covered under standard product warranty terms
• Supported by distributor and manufacturer documentation
