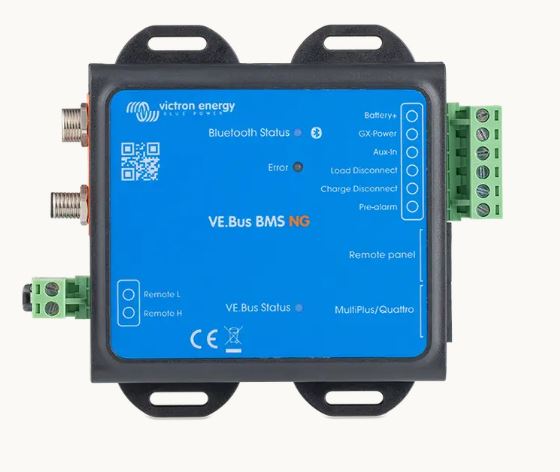

Victron VE.Bus BMS NG - BMS300200300

Victron VE.Bus BMS NG - BMS300200300

Please sign in to see pricing
  • All-in-one BMS for Lithium NG – designed specifically for Victron Lithium NG batteries
  • VE.Bus compatible – seamless integration with Victron inverters and inverter/chargers
  • Built-in Bluetooth Smart – wireless monitoring and configuration via VictronConnect
  • No external shunt required – receives current and SoC data directly from batteries
  • Advanced protection logic – safeguards against voltage and temperature faults
  • Scalable system design – supports large battery banks up to hundreds of kWh
View full details
  • Description
  • Downloads

Description

Overview

The Victron VE.Bus BMS NG is a complete Battery Management System designed exclusively for Victron Lithium NG batteries. It is intended for use in systems with Victron inverters or inverter/chargers that communicate via VE.Bus, providing centralised monitoring, protection and system control.

The VE.Bus BMS NG continuously monitors individual cell voltage and battery temperature, protecting the system from overvoltage, undervoltage, and over-temperature or under-temperature conditions. With built-in Bluetooth and direct battery communication, it simplifies system design while delivering advanced protection and scalability for residential, commercial and off-grid energy storage systems.

Key Features

Comprehensive Battery Protection

  • Monitors individual cell voltage for overvoltage and undervoltage protection
  • Protects against over-temperature and under-temperature conditions
  • Ensures safe and reliable Lithium NG battery operation

Bluetooth Smart Monitoring

  • Built-in Bluetooth Smart for wireless configuration and monitoring
  • Compatible with the VictronConnect app
  • Supports firmware updates and system diagnostics

Instant Readout Functionality

  • Displays state of charge, battery temperature, warnings and alarms
  • Visible directly in the VictronConnect device list
  • No need to open a detailed connection to view key system data

Integrated Control Outputs

  • Load disconnect output to prevent deep discharge
  • Charge disconnect output to prevent overvoltage
  • Pre-alarm output for early low-voltage warning
  • Remote on/off control for external system management

System Scalability

  • Supports series, parallel or combined battery configurations
  • Compatible with 12V, 24V and 48V systems
  • Up to 50 batteries in 12V or 24V systems, and 25 batteries in 48V systems
  • Expandable up to 192 kWh (12V), 384 kWh (24V) and 128 kWh (48V)
  • Multiple BMS units can be paralleled for redundancy and expansion

Visual Status Indicators

  • Blue LED indicates Bluetooth status
  • Red LED signals warnings and system errors
