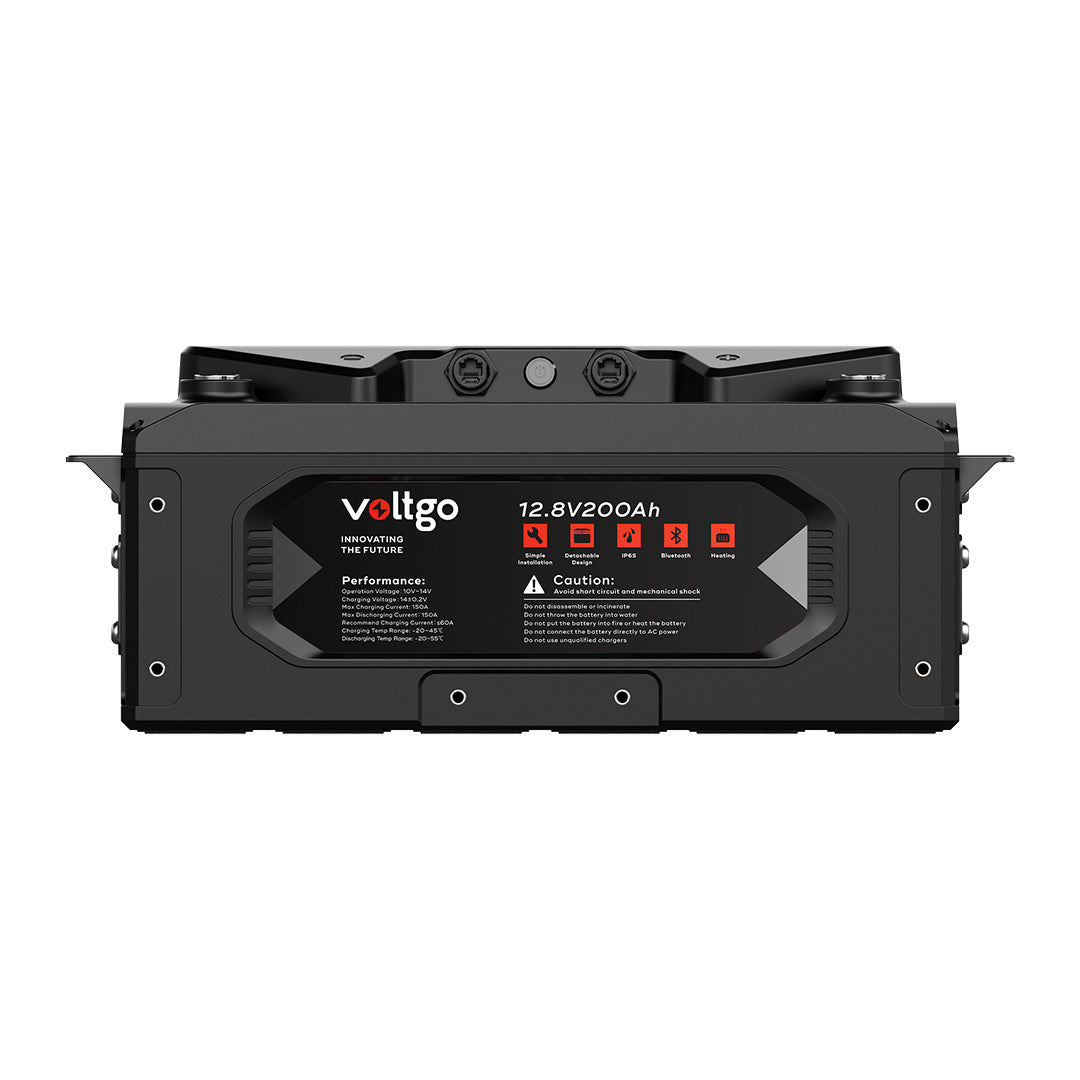

VoltGo 12.8V 200Ah IP65 LiFePO4 Battery with Bluetooth/CAN/RS485 - VLRV2560A

VoltGo 12.8V 200Ah IP65 LiFePO4 Battery with Bluetooth/CAN/RS485 - VLRV2560A

Please sign in to see pricing
  • 12.8V 200Ah LiFePO₄ battery – 2560 Wh high-density energy storage
  • – dust-tight and protected against water spray IP65 rated, marine-ready
  • Advanced connectivity – Bluetooth, CAN & RS485 for monitoring and integration
  • Scalable up to 40.96 kWh – parallel up to 16 modules (no series connection)
  • Integrated heating & safety – cold-weather charging with in-built fire protection
  • IEC 62619:2022 compliant – tested to international lithium battery standards
View full details
  • Description
  • Specifications
  • Downloads

Description

Overview

The VoltGo VLRV2560A is a premium 12.8V 200Ah (2560Wh) Lithium Iron Phosphate (LiFePO₄) battery engineered for long cycle life, safety, and flexibility. Designed for both single-module use and scalable parallel systems, it is an ideal replacement for traditional lead-acid deep cycle batteries across stationary and mobile applications.

Housed in a rugged, UL94 V-0 flame-retardant ABS enclosure with an IP65 rating, the VLRV2560A is well suited to harsh environments including marine, RV, caravan, 4x4, and off-grid solar installations. Integrated Bluetooth and CAN/RS485 communications provide real-time monitoring and seamless system integration.

Key Features

Battery Performance & Scalability

  • Nominal voltage: 12.8V
  • Capacity: 200Ah (2560Wh)
  • Parallel scalability: up to 16 batteries (40.96 kWh)
  • Parallel connection only – no series connections permitted

Advanced Safety & BMS

  • Intelligent BMS with protections for short circuit, over/under voltage, and over/under temperature
  • Automatic cell balancing across parallel modules
  • UL94 V-0 flame-retardant casing
  • Integrated aerosol fire suppression system for added safety

Cold Weather Performance

  • Integrated battery heating system
  • Maintains operating temperature between 0°C and 45°C when external power is available
  • Enables charging and discharging down to -20°C

Monitoring & Smart Integration

  • Bluetooth monitoring via smartphone or tablet
  • CAN & RS485 ports for system integration
  • Compatible with Victron GX devices for monitoring and control
  • Top-mounted interface with ON/OFF switch, SoC indicator, alarm and function LEDs

SMART-GO Fastening System

  • Integrated removable brackets for transport and installation
  • Multiple nut inserts for secure floor, wall, or stacked mounting
  • Fish plates included for inter-battery fastening

Rugged & Serviceable Construction

  • Impact-resistant, IP65-rated ABS enclosure
  • 4S4P internal cell construction
  • Detachable lid for authorised servicing (by qualified technicians only)

Specifications

Model VLRV2560A
Nominal Voltage 12.8V
Nominal Capacity 200Ah
Usable Capacity 2560Wh
Recommended Charge Current ≤60A
Max Constant Charge Current 150A
Max Continuous Discharge Current 150A(Constant)
Peak Current (Peak 1) 250A@30s
Width 460mm
Depth 220mm
Height 212mm
Weight 25kg
Communication Port Bluetooth
Working Temperature – Charge -20~45°C(Heating)
Working Temperature – Discharge -20~55°C
Shelf Temperature -20~45°C
IP Rating of Enclosure IP65
Humidity 5-95%RH
Design Life 15Years
Cycle Life >6000@25°C
Certifications UL1973 Compliant, UN38.3

Downloads

Datasheet
