VoltGo 25.6V 100Ah IP65 LiFePO4 Battery with Bluetooth/CAN/RS485 - VLRV2560B

VoltGo 25.6V 100Ah IP65 LiFePO4 Battery with Bluetooth/CAN/RS485 - VLRV2560B

Please sign in to see pricing
  • High-capacity LiFePO₄ battery module – 25.6 V, 100 Ah, 2.56 kWh per unit
  • – suitable for marine and high-moisture environments IP65 rated flame-retardant enclosure
  • Expandable up to 16 batteries in parallel – scalable systems up to 40.96 kWh
  • Advanced intelligent BMS – comprehensive electrical and thermal protection
  • Integrated battery heating – enables operation down to −20 °C
  • Bluetooth, CAN & RS485 communications – real-time monitoring and system integration
View full details
  • Description
  • Specifications
  • Downloads

Description

Overview

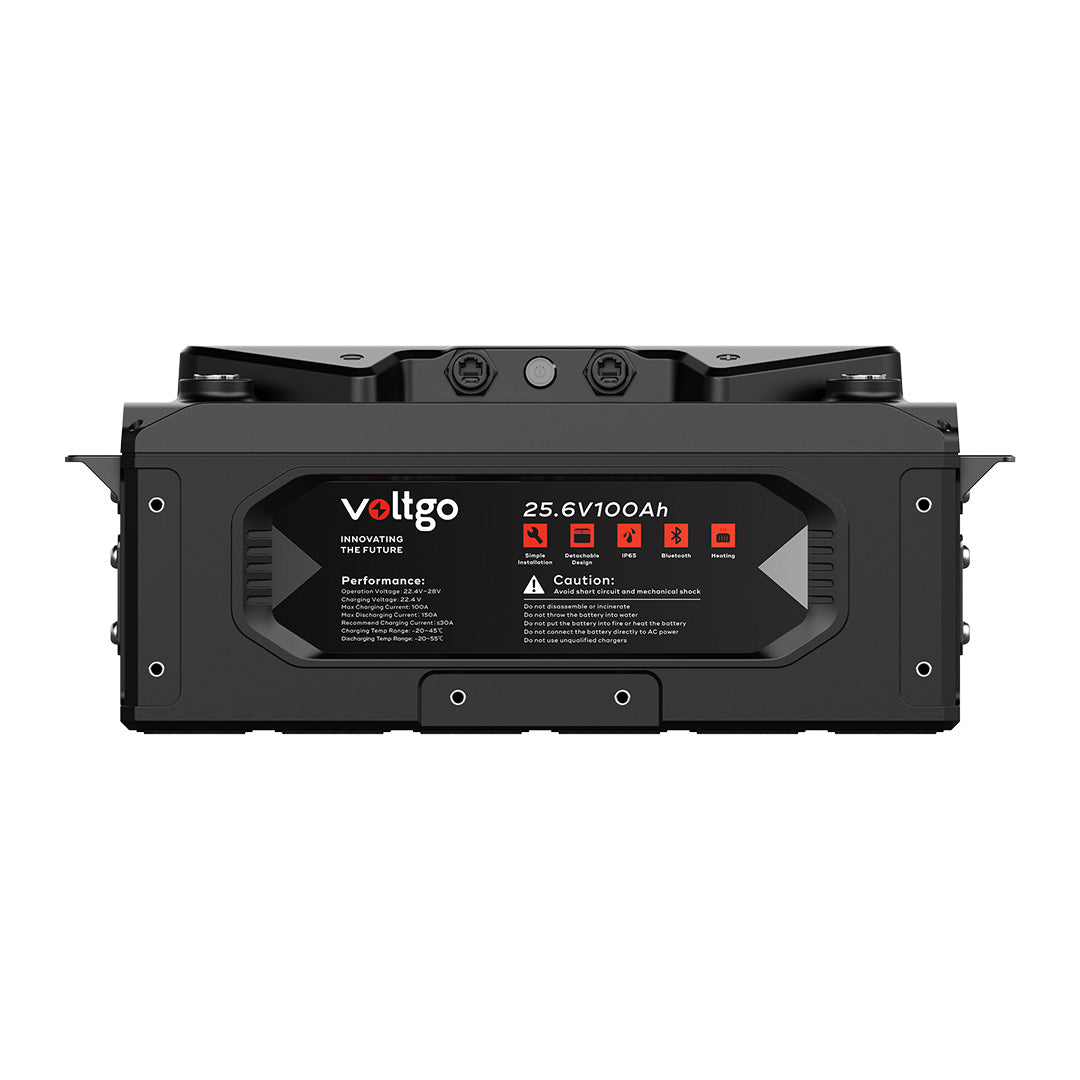

The VoltGo VLRV2560B is a high-performance 25.6 V 100 Ah Lithium Iron Phosphate (LiFePO₄) battery module delivering 2.56 kWh of usable energy per unit. Designed for both stand-alone and scalable multi-battery systems, it provides a lightweight, maintenance-free alternative to traditional lead-acid batteries.

Encased in a rugged IP65-rated, UL94 V-0 flame-retardant ABS enclosure, the VLRV2560B is ideally suited to off-grid solar, caravan, RV, marine, and industrial applications. With advanced safety systems, integrated mounting options, and intelligent communications, it is engineered for long service life, reliability, and flexible system design.

Key Features

Advanced Safety & Reliability

  • Intelligent Battery Management System (BMS)
  • Protection against short circuit, over/under voltage, and over/under temperature
  • UL94 V-0 flame-retardant casing with integrated aerosol fire suppression

Cold Weather Performance

  • Integrated battery heating when connected to external power
  • Maintains internal temperature between 0 °C and 45 °C
  • Supports charging and discharging in ambient temperatures down to −20 °C

Scalable & Flexible System Design

  • Expandable up to 16 batteries in parallel (parallel connection only)
  • Maximum system capacity of 40.96 kWh
  • Self-balancing BMS ensures even performance across all modules

Smart Monitoring & Integration

  • Bluetooth monitoring via smartphone or tablet
  • Real-time visibility of voltage, state of charge, consumption, health, and cycle count
  • CAN & RS485 ports for integration with GX monitoring devices

Robust Construction & Installation

  • Impact-resistant, IP65 water and dust resistant enclosure
  • SMART-GO fastening system with removable brackets and multiple mounting points
  • Designed for floor, wall, or stacked installations

Specifications

Model VLRV2560B
Nominal Voltage 25.6V
Nominal Capacity 100Ah
Usable Capacity 2560Wh
Recommended Charge Current ≤30A
Max Constant Charge Current 100A
Max Continuous Discharge Current 150A(Constant)
Peak Current (Peak 1) 200A@30s
Width 460mm
Depth 220mm
Height 212mm
Weight 25kg
Communication Port Bluetooth
Working Temperature – Charge -20~45°C(Heating)
Working Temperature – Discharge -20~55°C
Shelf Temperature -20~45°C
IP Rating of Enclosure IP65
Humidity 5-95%RH
Design Life 15Years
Cycle Life >6000@25°C
Certifications UL1973 Compliant, UN38.3

Downloads

Datsheet
