ZYC SIMPO Cabinet 10F Indoor - FD01C00001

Overview

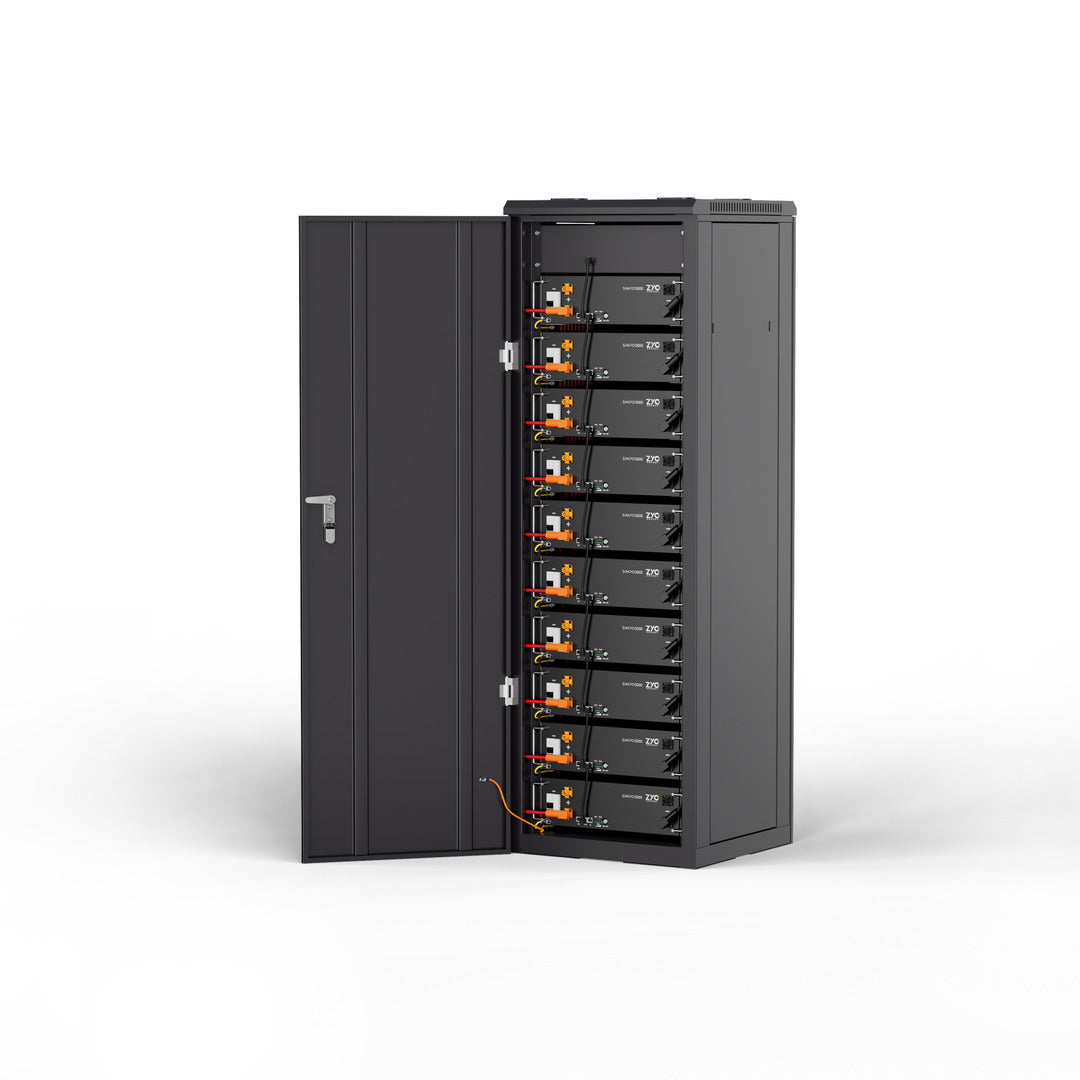

The ZYC SIMPO Cabinet 10 is a pre-wired indoor battery cabinet purpose-built to house up to 10 SIMPO 5000 battery modules in a single rack. Designed for high-output energy storage systems, it provides a clean, professional, and time-efficient installation solution.

Featuring factory-installed cabling, high-current busbar support, and a robust mechanical design, the SIMPO Cabinet 10 simplifies deployment while maximising space utilisation and system reliability for residential, commercial, and industrial energy storage projects.

Key Features

Pre-Wired & Plug & Play Design

• Includes 1 × ZYC SIMPO 19-inch pre-wired cabinet
• Factory pre-installed battery interconnection cables
• Plug & Play installation for rapid commissioning

High-Capacity Battery Integration

• Supports 10 SIMPO 5000 battery modules in parallel
• Maximum capacity of approximately 50 kWh per rack
• Pre-wired quick connectors with 4 AWG UL-rated cable

High-Current Electrical Design

• Maximum continuous busbar current: 1250 A
• M12 nut bolting for secure high-current connections
• No integrated DC circuit breaker (external protection required)

Durable Indoor Enclosure

• IP20 rated for indoor installations
• Top cable entry for clean cable management
• Strong steel construction for long-term durability

Installation & Mobility

• Dimensions (W × D × H): 600 × 600 × 1890 mm
• Cabinet weight: 128 kg
• 4 integrated wheels for easy positioning
• 4 load-bearing feet for stable, permanent installation
