ZYC SIMPO Cabinet 10 Outdoor - 4873

Overview

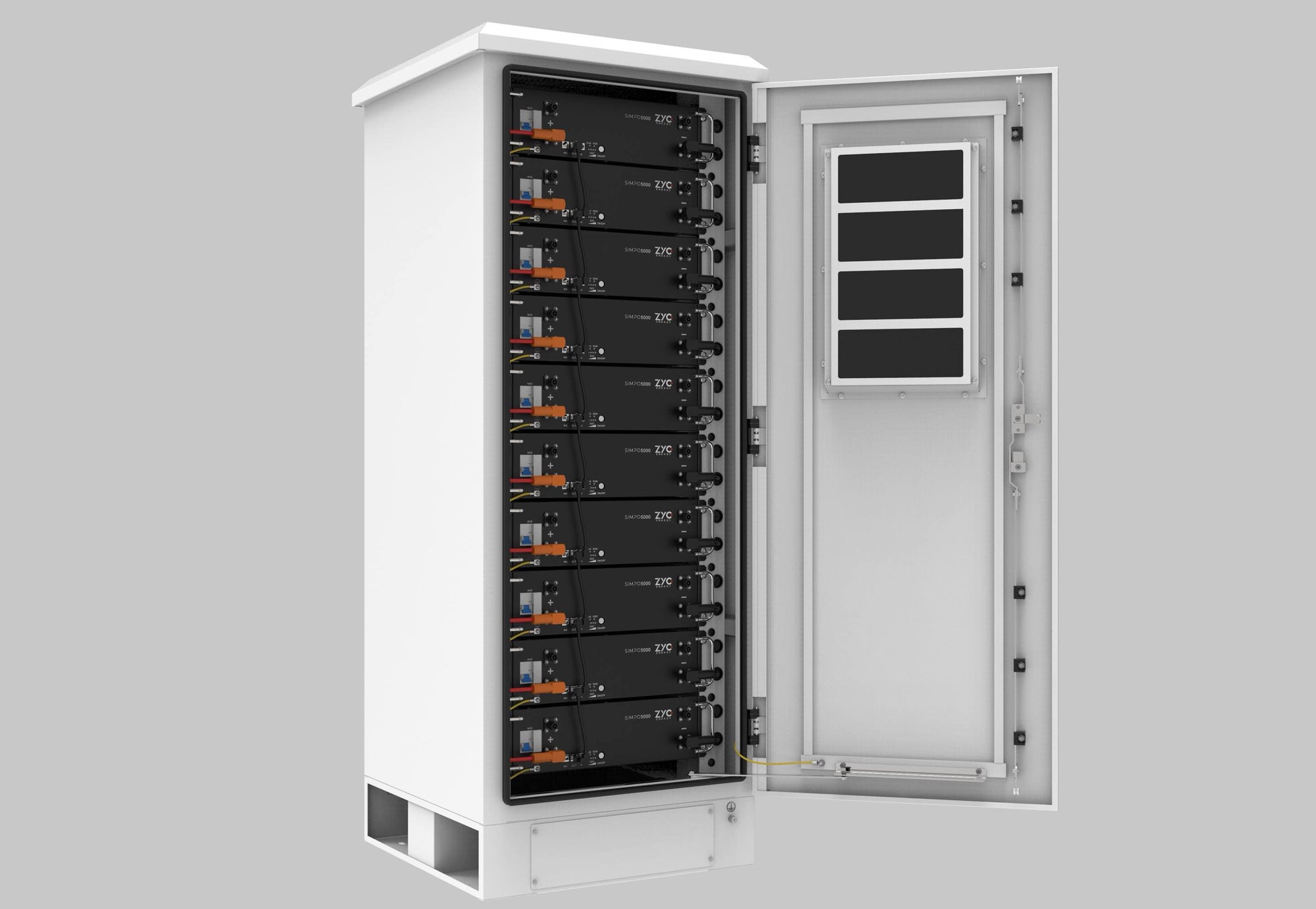

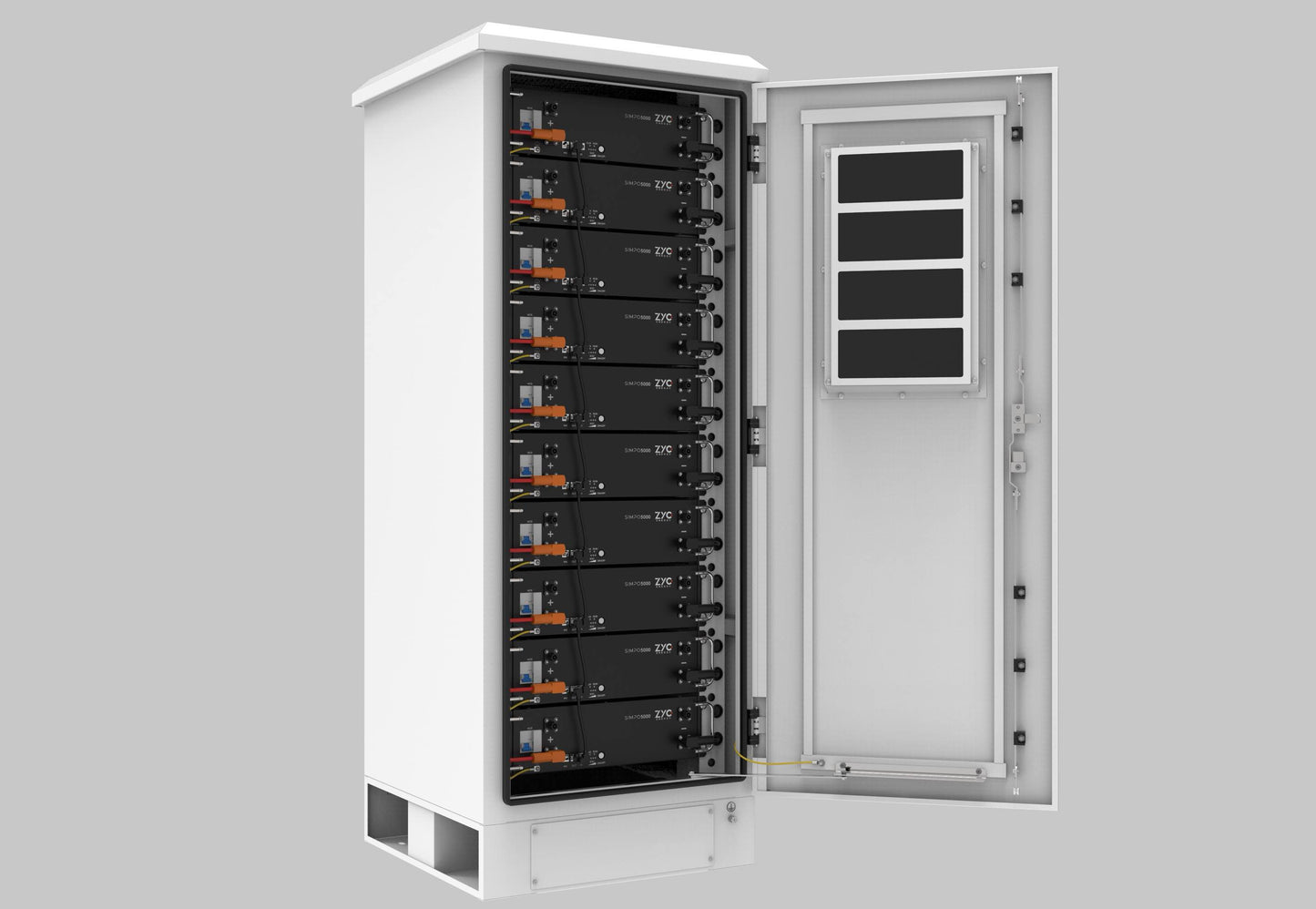

The ZYC SIMPO Cabinet10+ Outdoor is a robust, pre-wired outdoor enclosure engineered to house up to 10 SIMPO 5000 battery modules. Designed for high-output energy storage applications, the Cabinet10+ delivers reliable performance in demanding environments while streamlining installation and system integration.

With an IP55-rated enclosure, advanced anti-corrosion protection, and natural convection cooling, the SIMPO Cabinet10+ is ideal for outdoor energy storage installations. Integrated waterproof cable entry points and factory-installed internal wiring further reduce installation time and complexity.

Key Features

High-Capacity Battery Enclosure

• Supports up to 10 × SIMPO 5000 battery modules
• Designed for high-current, high-output energy storage systems
• Maximum output current: 700 A

Outdoor-Ready Construction

• IP55 protection rating for outdoor installations
• C4M anti-corrosion level for harsh environmental conditions
• Durable enclosure with integrated waterproof cable entry points

Pre-Wired & Installation Friendly

• Pre-installed internal wiring for power connections
• Ready-to-connect design reduces installation time
• Engineered for clean and efficient system integration

Thermal & Environmental Performance

• Natural convection cooling for reliable, low-maintenance operation
• Operating temperature range: -20 °C to 60 °C
• Operating altitude: up to 3000 m

Physical Specifications

• Dimensions: 680 mm (W) × 1740 mm (H) × 700 mm (D)
• Weight (gross / net): 142 kg / 132 kg
• Colour: White
