ZYC SIMPO Cabinet 4 Outdoor - 3960

Overview

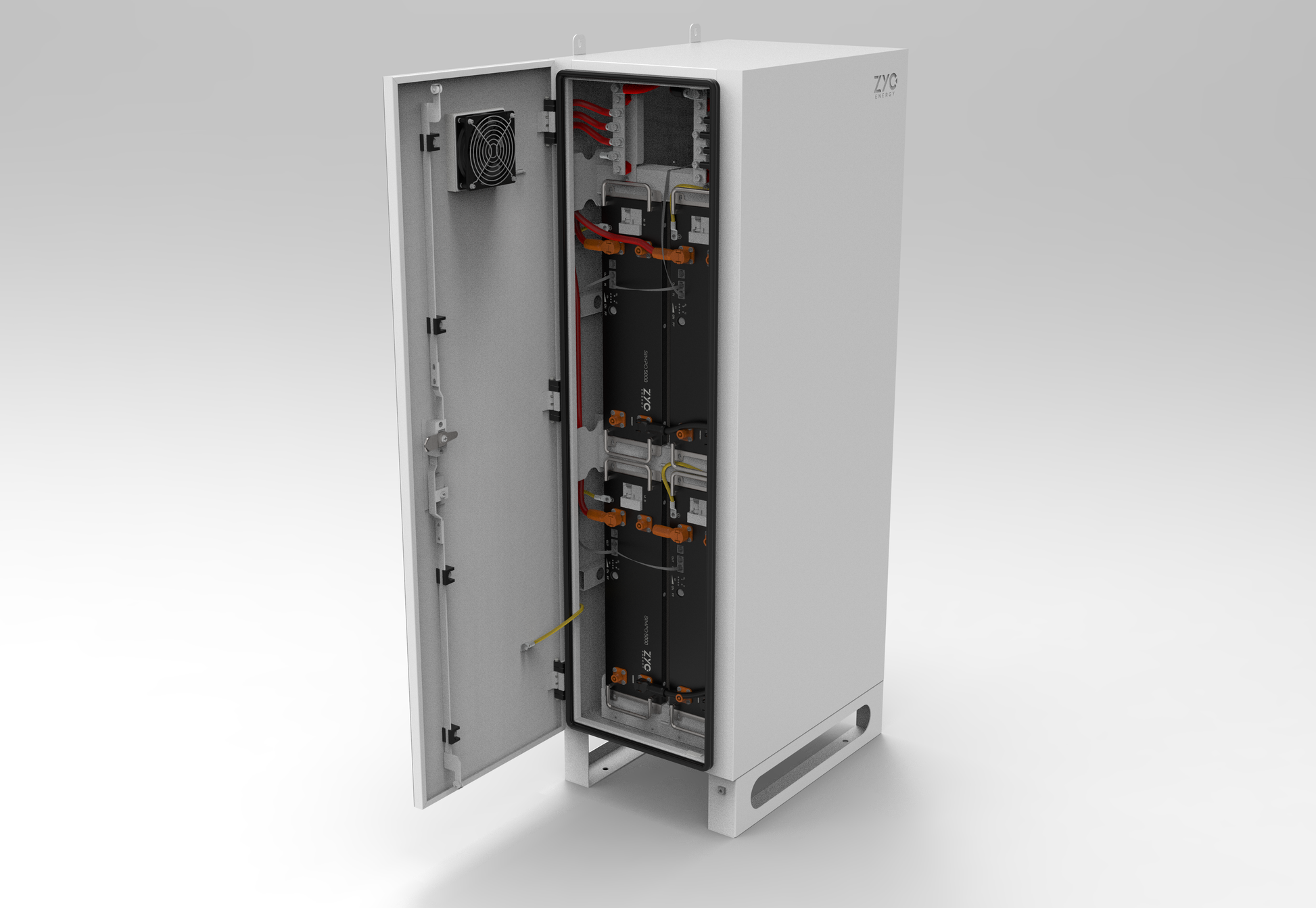

The SIMPO Cabinet4+ Outdoor is a compact, pre-wired enclosure designed for outdoor and indoor installations using SIMPO 5000 battery modules. Built to perform reliably in harsh environments, the Cabinet4+ offers a space-efficient and installer-friendly solution for smaller high-output energy storage systems.

With an IP55-rated enclosure, C4M anti-corrosion protection, and natural convection cooling, the SIMPO Cabinet4+ delivers long-term durability and dependable operation. Integrated waterproof cable entry points and factory-installed internal wiring reduce installation time and ensure clean system integration.

Key Features

Compact Battery Enclosure

• Supports up to 4 × SIMPO 5000 battery modules
• Designed for high-current residential and commercial energy storage
• Maximum output current: 250 A

Indoor & Outdoor Ready Construction

• IP55 protection rating for indoor and outdoor installations
• C4M anti-corrosion level for coastal and industrial environments
• Durable enclosure with integrated waterproof cable entry points

Pre-Wired & Installer Friendly

• Pre-installed internal wiring for power connections
• Ready-to-connect design simplifies installation
• Supports clean and efficient system integration

Thermal & Environmental Performance

• Natural convection cooling for reliable, low-maintenance operation
• Operating temperature range: -20 °C to 60 °C

Physical Specifications

• Dimensions: 580 mm (W) × 1380 mm (H) × 400 mm (D)
• Weight (gross / net): 59 kg / 52 kg
• Colour: White
