ZYC SIMPO Cabinet 6F Indoor - 2864 / FD01B00001

Overview

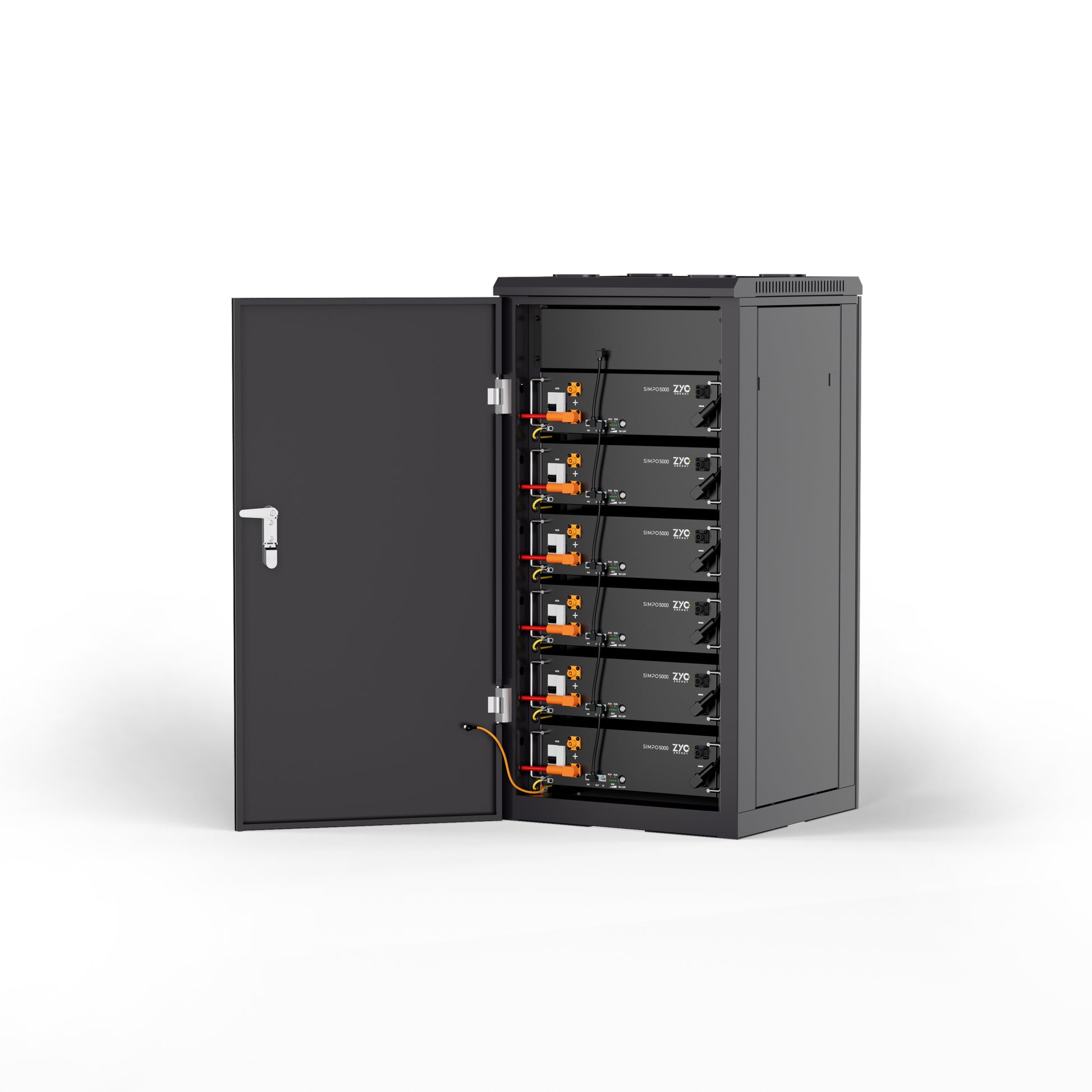

The ZYC SIMPO Cabinet 6 is a pre-wired indoor battery cabinet designed to house up to 6 SIMPO 5000 battery modules in a single rack. Built for fast installation and reliable performance, it provides an efficient enclosure solution for high-output energy storage systems.

With factory-installed cabling, a high-current busbar, and a compact footprint, the SIMPO Cabinet 6 simplifies system deployment while maximising space efficiency and ensuring long-term reliability for residential, commercial, and industrial energy storage installations.

Key Features

Pre-Wired & Plug & Play Design

• Includes 1 × ZYC SIMPO pre-wired cabinet
• Pre-installed battery interconnection cables
• Plug & Play installation for quick commissioning

High-Capacity Battery Integration

• Supports 6 SIMPO 5000 battery modules in parallel
• Maximum capacity of approximately 30 kWh per rack
• Pre-wired quick connectors with 4 AWG UL-rated cable

High-Current Electrical Design

• Maximum continuous busbar current: 625 A
• M10 nut bolting for secure high-current connections
• No integrated DC circuit breaker (external protection required)

Durable Indoor Enclosure

• IP20 rated for indoor installations
• Top cable entry for clean cable management
• Strong steel construction for long-term durability

Installation & Mobility

• Dimensions (W × D × H): 600 × 600 × 1270 mm
• Cabinet weight: 91 kg
• 4 integrated wheels for easy positioning
• 4 load-bearing feet for stable, permanent installation
