ZYC SIMPO Cabinet 6 Outdoor - 3961

Overview

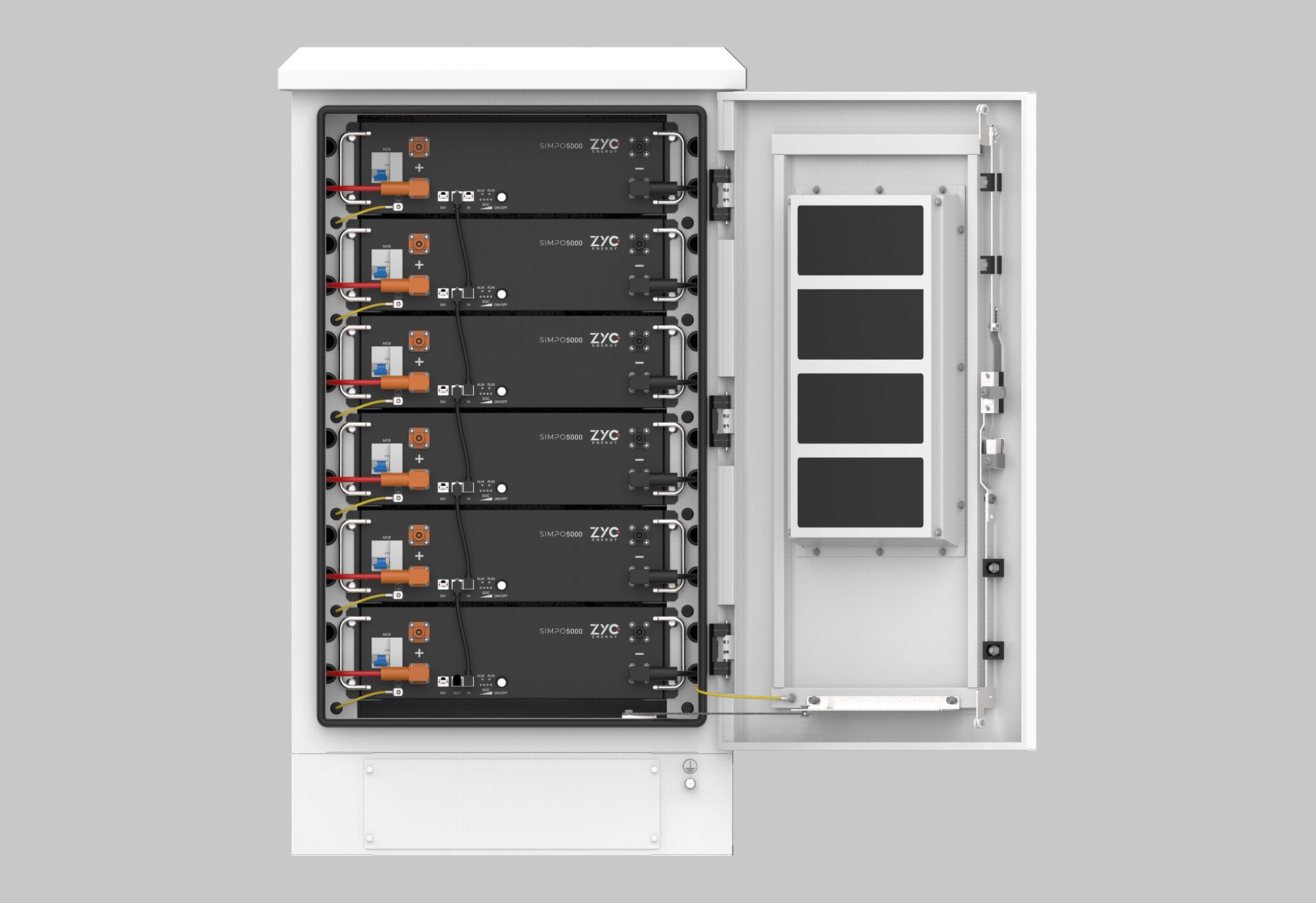

The ZYC SIMPO Cabinet6+ Outdoor is a compact, pre-wired outdoor enclosure designed to house up to 6 SIMPO 5000 battery modules. Engineered for high-output energy storage applications, the Cabinet6+ provides a durable and installer-friendly solution for residential and commercial environments where space efficiency and outdoor protection are essential.

Featuring an IP55-rated enclosure, advanced C4M anti-corrosion protection, and natural convection cooling, the SIMPO Cabinet6+ is built to perform reliably in harsh outdoor conditions. Integrated waterproof cable entry points and factory-installed internal wiring help reduce installation time and complexity.

Key Features

Compact High-Capacity Battery Enclosure

• Supports up to 6 × SIMPO 5000 battery modules
• Designed for high-current energy storage applications
• Maximum output current: 400 A

Outdoor-Ready Construction

• IP55 protection rating for outdoor installations
• C4M anti-corrosion level for coastal and industrial environments
• Durable enclosure with integrated waterproof cable entry points

Pre-Wired & Installation Friendly

• Pre-installed internal wiring for power connections
• Ready-to-connect design reduces installation time
• Supports clean and efficient system integration

Thermal & Environmental Performance

• Natural convection cooling for reliable, low-maintenance operation
• Operating temperature range: -20 °C to 60 °C
• Operating altitude: up to 3000 m

Physical Specifications

• Dimensions: 680 mm (W) × 1175 mm (H) × 700 mm (D)
• Weight (gross / net): 125 kg / 117 kg
• Colour: White
