ZYC Simpo HV Pro Battery Rack (IP20)
ZYC Simpo HV Pro Battery Rack (IP20)
Please sign in to see pricing
Description
Overview

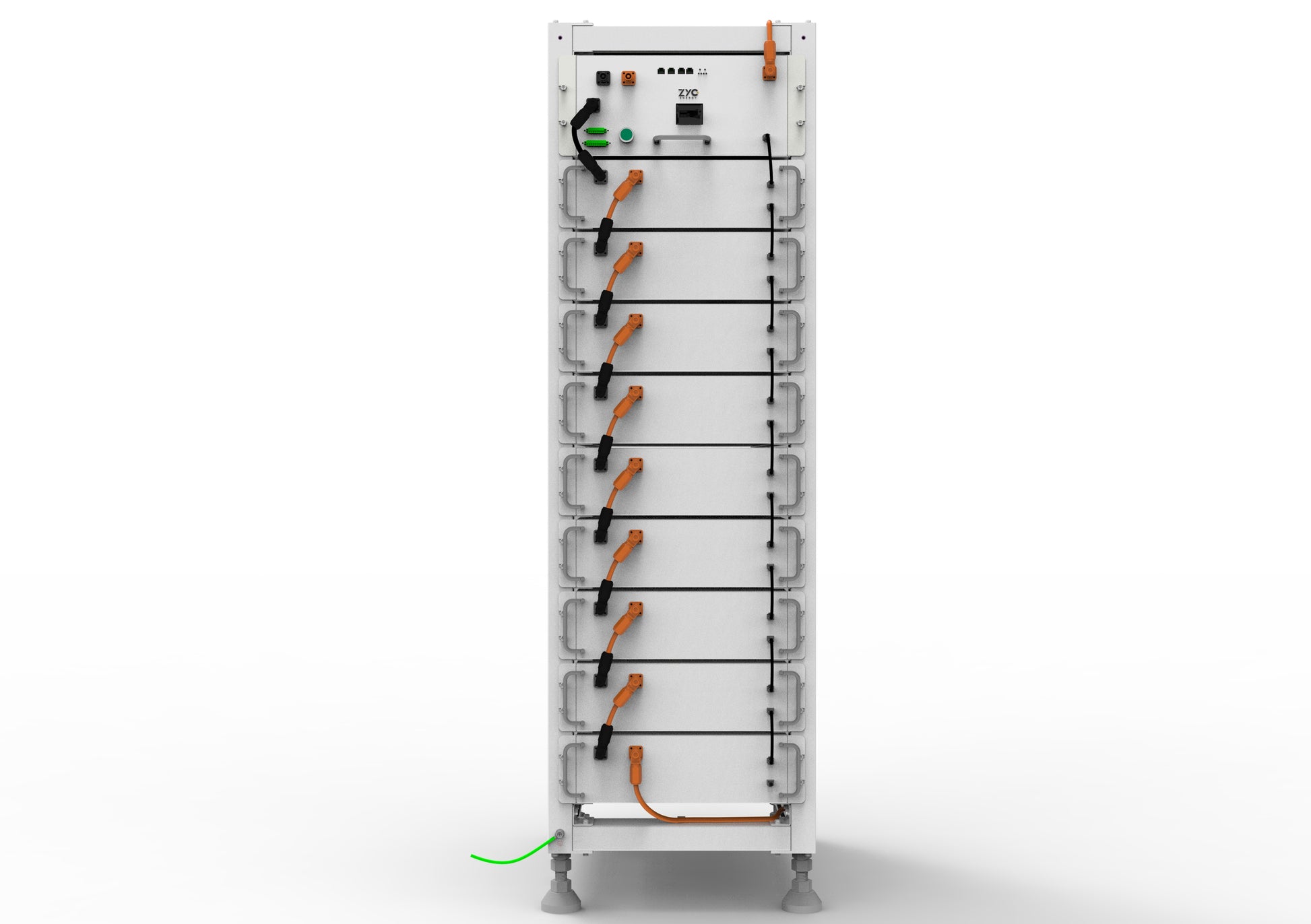

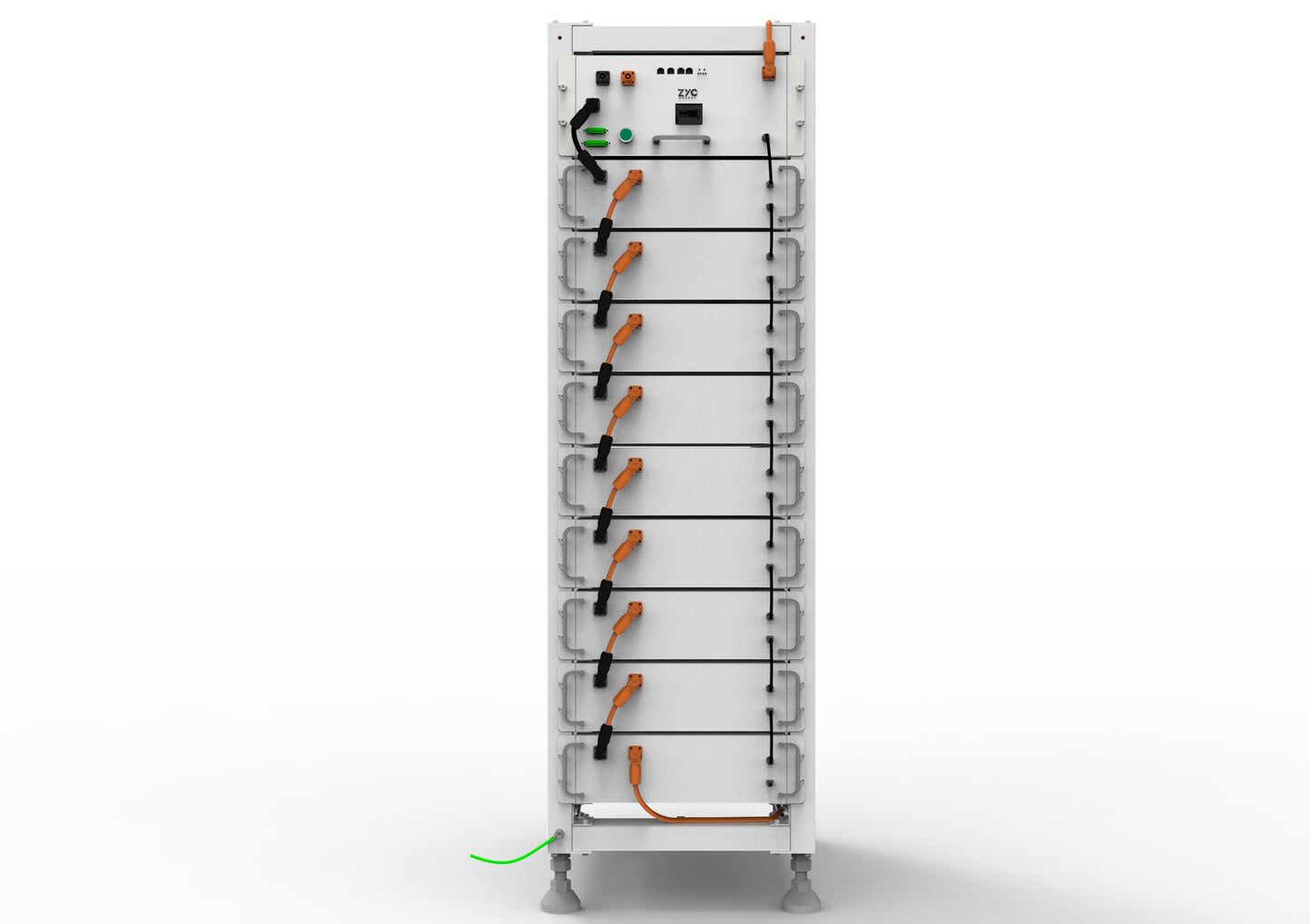

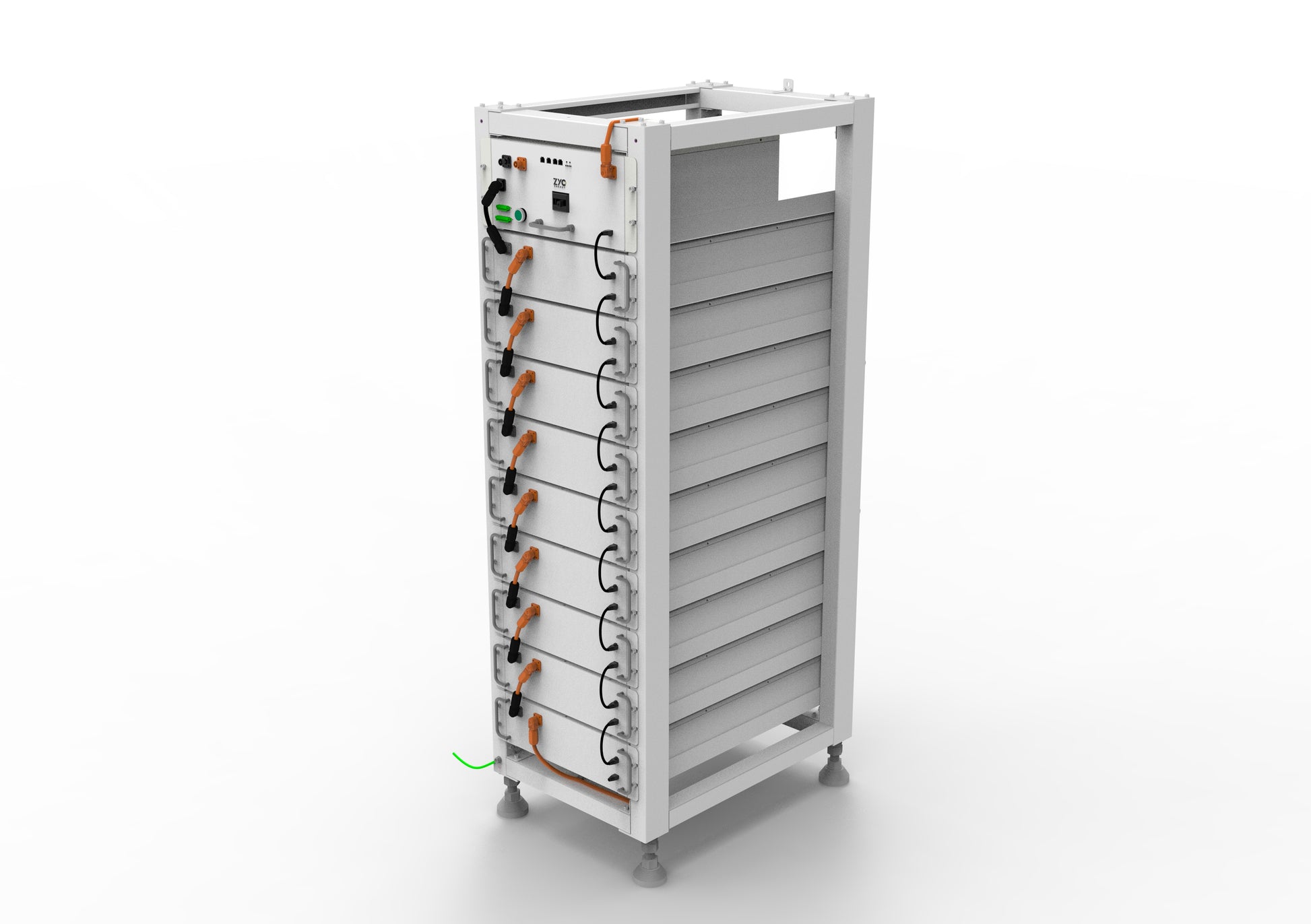

The ZYC Simpo HV Pro Battery Rack is the indoor, IP20 open rack that houses the Simpo HV Pro high-voltage battery energy storage system. It holds up to 11 Simpo HV Pro battery modules plus the Power Distribution Unit (PDU), scaling from 48.38 kWh to 88.70 kWh of nominal energy (460.8–844.8 V).
The rack ships as the frame; battery modules and the PDU are ordered separately. Designed for fast plug-and-play commissioning with advanced cell-level safety and remote monitoring, up to 16 racks can be connected in parallel for large commercial & industrial storage.
Key Features
High-Capacity Modular Design
- Holds 6 to 11 Simpo HV Pro modules (48.38–88.70 kWh)
- System voltage 460.8–844.8 V depending on module count

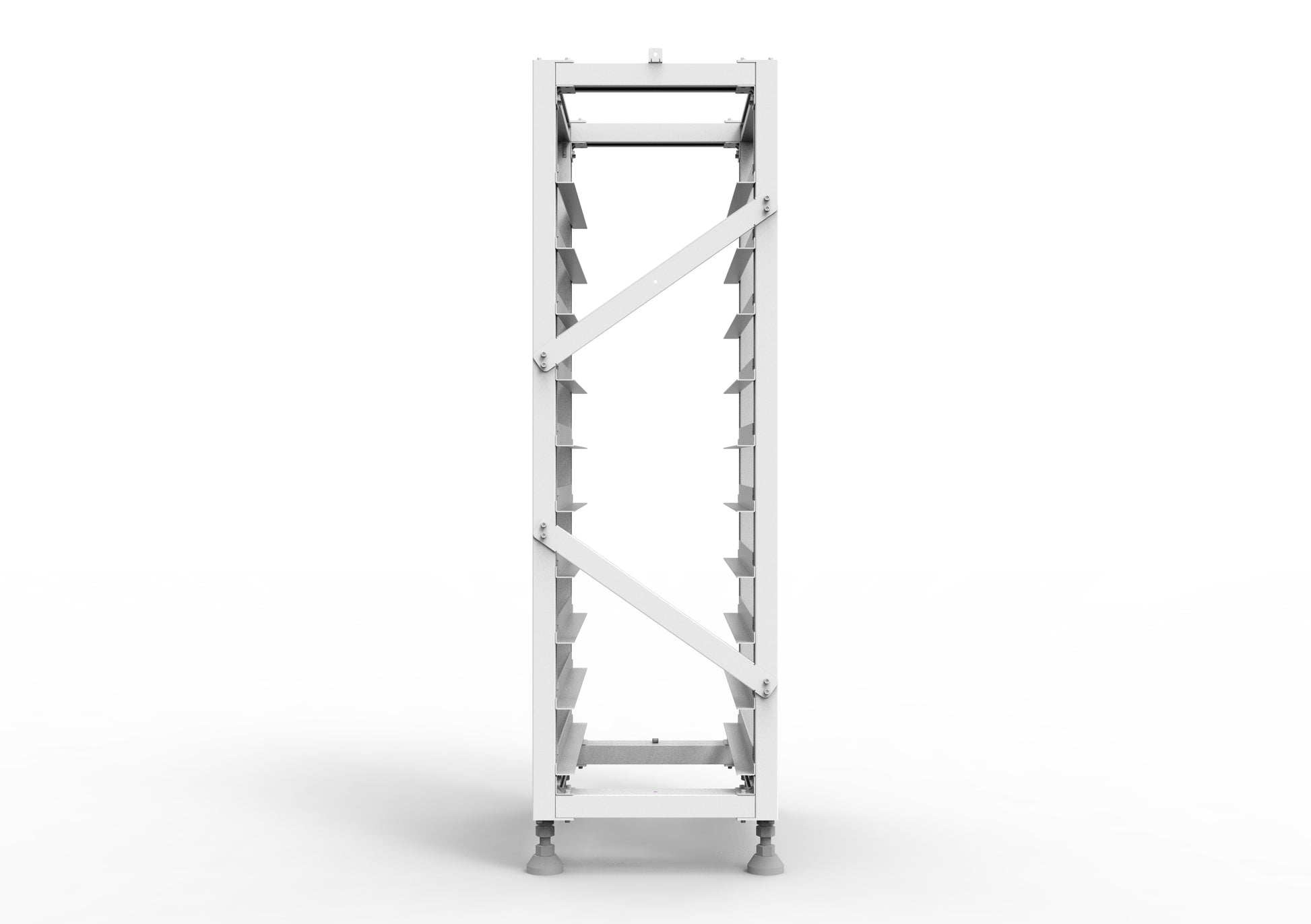

- Ships as the rack frame — modules and PDU sold separately
Power & Scalability
- 105 A maximum continuous current; 150 A peak (5 s)
- Up to 16 racks in parallel for large-scale C&I systems
- ≥95% round-trip efficiency
Installation & System Integration
- Compact 564 × 1773 × 783 mm (564 × 2060 × 783 mm for 10–11 modules)
- Plug-and-play cabling with the PDU mounted on top
- CAN / RS485 / Modbus TCP/IP communication
- Remote monitoring via the ZYC Assist app and ZYC Portal
Wide Inverter Compatibility
- Compatible with Deye, GoodWe, Solis, SMA & Solinteg (KACO with an external EMS)
- See the Inverter Configuration List for approved models and rack sizing
Operating Environment
- Operating temperature: -20°C to 55°C
- Humidity: <95% (non-condensing) · Altitude: ≤3000 m
- IP20 rated for indoor installation
- Part of a system certified to VDE-AR-E 2510-50, IEC62619, UN38.3, CE, IEC62040 & CEC
Specifications
| Model | SIMPO HV Pro Rack |
|---|---|
| Type | Indoor open battery rack (IP20) |
| Module Capacity | 6–11 modules |
| System Energy Range | 48.38–88.70 kWh |
| System Voltage Range | 460.8–844.8 V |
| Rack Frame Weight | 20kg (empty) |
| Populated Weight | 495–820kg (with modules) |
| Max Constant Current | 105A |
| Peak Current | 150A (5s) |
| Width | 564mm |
| Height | 1773mm (6–9 modules) / 2060mm (10–11 modules) |
| Depth | 783mm |
| Communication | CAN / RS485 / Modbus TCP/IP |
| Parallel Capability | Up to 16 racks in parallel |
| Working Temperature | -20~55°C |
| Humidity | <95% (Non-Condensing) |
| Altitude | ≤3000m |
| IP Rating | IP20 |
| Efficiency | ≥95% |
| Compatible Inverters | Deye, GoodWe, Solis, SMA, Solinteg (KACO with external EMS) |
| Certifications | IEC62619, UN38.3, CE, VDE-AR-E 2510-50, IEC62040, CEC |
| Warranty | 10-Year Product Warranty |
