ZYC Simpo HV Pro Power Distribution Unit (PDU)

Overview

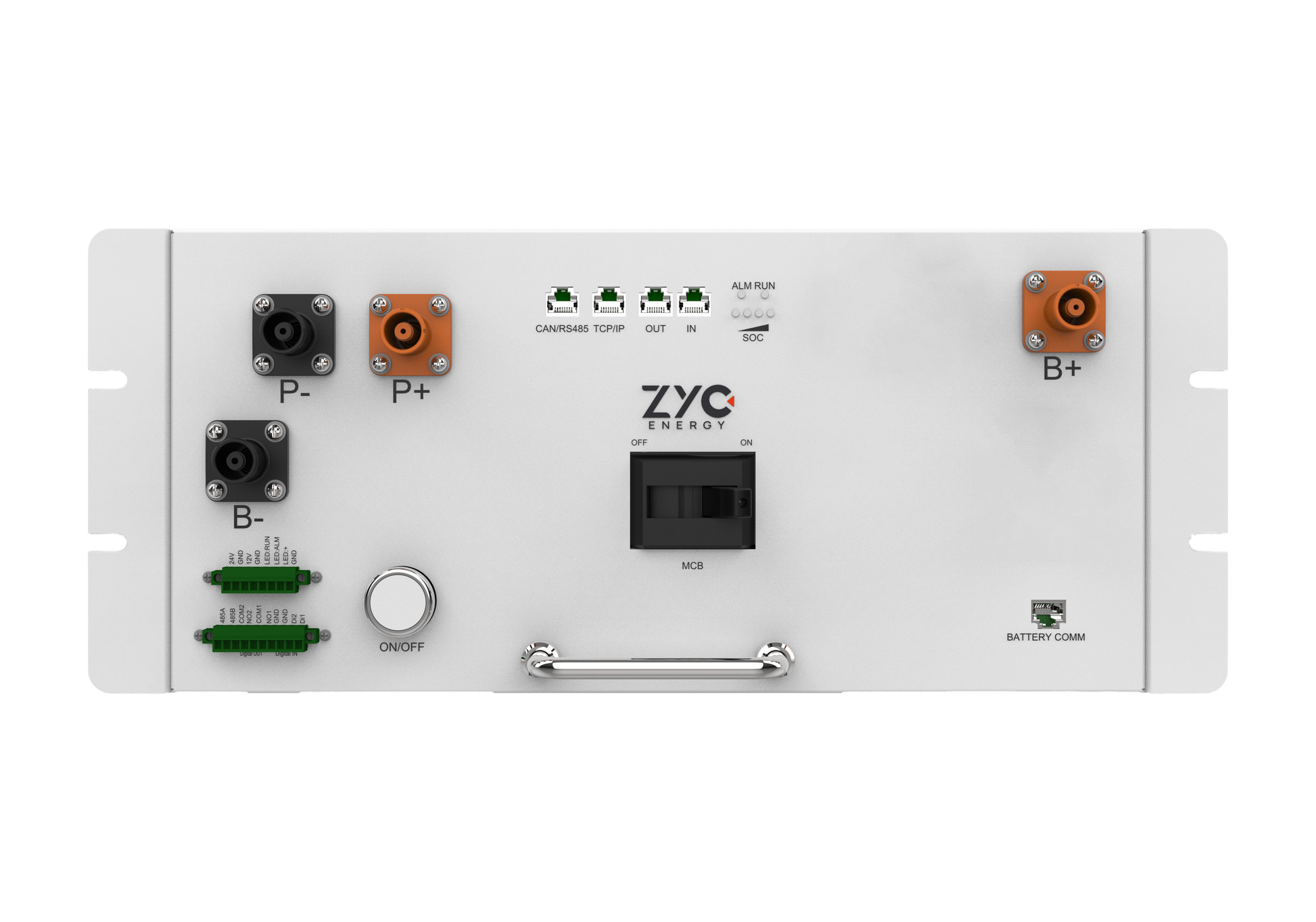

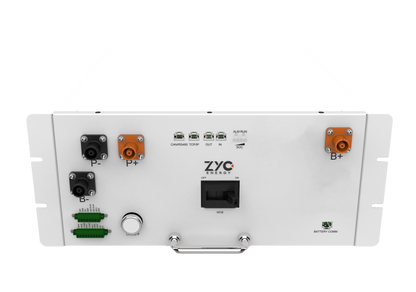

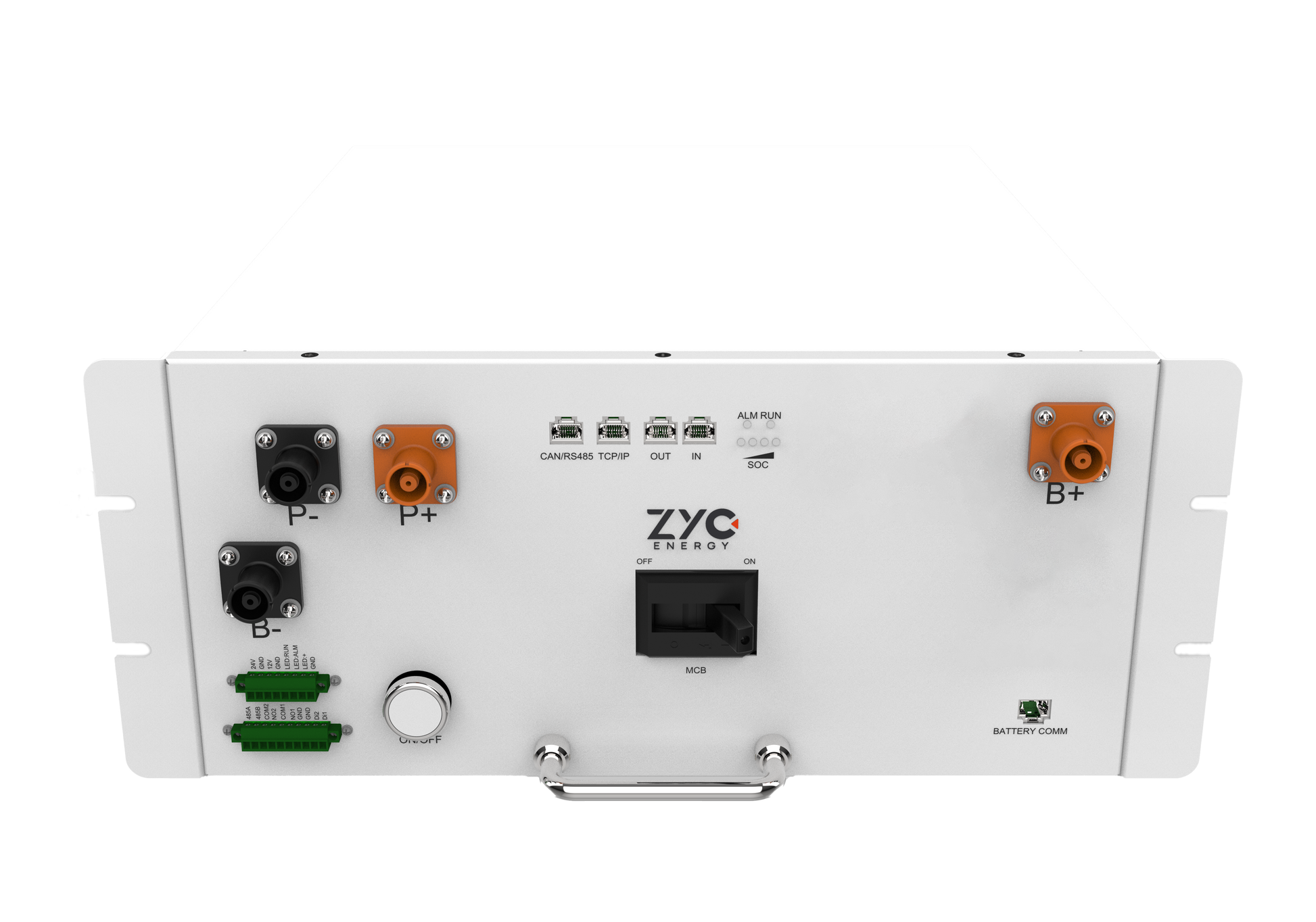

The ZYC Simpo HV Pro Power Distribution Unit (PDU) is the control and power-distribution hub of the ZYC Simpo HV Pro high-voltage battery energy storage system. It integrates the master battery management system (BMS), the main circuit breaker (MCB) and the high-voltage power terminals that link the battery module stack to the inverter (PCS).

Rated for 200–1000 Vdc operation at up to 250 A, one PDU controls a rack of up to 11 Simpo HV Pro modules and coordinates protection, communication, black-start and remote monitoring — with up to 16 racks connected in parallel for large commercial & industrial deployments.

Key Features

System Control & Protection

• Integrated master BMS with real-time RUN / ALM / SOC indication
• Built-in main circuit breaker (MCB) for system isolation
• Manages a rack of up to 11 Simpo HV Pro battery modules

High-Voltage Power Distribution

• 200–1000 Vdc operating range at up to 250 A
• P+ / P− power terminals to the inverter (PCS)
• B+ / B− power terminals to the battery module stack

Communication & Scalability

• CAN / RS485 (INV) and Modbus TCP/IP (ETH) to the inverter
• Parallel IN / OUT ports for up to 16 racks in parallel
• Remote monitoring via the ZYC Assist app and ZYC Portal

Black Start Capability

• Independent system power-up in off-grid scenarios

Installation & System Integration

• Compact 490 × 200 × 545 mm unit, 15 kg
• Mounts on top (indoor) or bottom (outdoor) of the module stack
• Plug-and-play with the Simpo HV Pro pre-configured cabling
• Part of a system certified to VDE-AR-E 2510-50, IEC62619, UN38.3, CE, IEC62040 & EN13849

Operating Environment

• Operating temperature: -20°C to 65°C
• IP20 rated for indoor installation
• Altitude: ≤3000 m
